Mechanical Insulation Appraisal · Preliminary Report

Minnesota Veteran's Home - Building 22

Engineered findings from a NAIMA 3E Plus walk-down assessment. 29 items inventoried across 8 systems · estimated $4,988/yr in recoverable operating cost.

Executive Summary

Overview of identified insulation upgrade opportunities and projected annual savings. This is a Preliminary Report. Please see the 'Line Item Detail' Page for detailed information about each item assessed along with Infrared Imaging. Your EEQA representative will now solicit bids from our Qualified Contractors. Please allow 4-6 weeks for the bidding to complete. Your EEQA representative will then submit to you a Final Report upon it's completion. All completed upgrades will have a Quality Control visit to ensure the Mechanical Insulation was installed in accordance with specifications.

Estimated Annual Savings
$4,988/yr
Energy cost reduction from upgrades
Current Operating Cost
$5,606/yr
Inventoried surface annual cost
Upgraded Operating Cost
$618/yr
After insulation improvements
Cost Reduction
89.0%
Operating cost decrease
Heat Flow Reduction
597,729kBtu/yr
597.7 MMBtu/yr saved
CO₂ Reduction
39.49MT/yr
Metric tons per year
NOₓ Reduction
174.7lbs/yr
Pounds per year
Items Assessed
29items
Across 8 systems
Annual Operating Cost Comparison
Current (As-Found)
$5,606
per year
→
After Upgrade
$618
per year

Upgrading the insulation on the 29 identified items would result in estimated annual energy cost savings of $4,988/yr, a reduction in heat flow of 597,729 kBtu/yr, a reduction in CO₂ emissions of 39.49 MT/yr, and a reduction in NOₓ emissions of 174.7 lbs/yr. All calculations were performed using the NAIMA 3E Plus (version 5.1) computer program.

Savings Analysis

Energy cost savings by system area, ranked by annual impact.

Annual Energy Cost Savings by System
5-Year Projected Savings
5-Year Energy Savings
$24,941
Cumulative cost avoidance
5-Year Heat Flow Saved
2,988MMBtu
Cumulative thermal savings
5-Year CO₂ Avoided
197.5MT
Equivalent to ~8 cars off the road/yr
Environmental Impact

Emissions reductions achieved through insulation upgrades.

CO₂ Reduction
39.49MT/yr
Metric tons carbon dioxide
NOₓ Reduction
174.7lbs/yr
Pounds nitrogen oxides
Equivalent Cars Removed
~8/yr
Based on avg 4.6 MT CO₂/car/yr
Heat Flow Saved
597.7MMBtu/yr
Thermal energy conserved
CO₂ Reduction by System
System Breakdown

Summary of each system/equipment group.

SystemItemsCurrent $/yrUpgraded $/yrSavings $/yrHeat kBtu/yrCO₂ MT/yrNOₓ lbs/yr
Line-Item Detail

Complete per-item inventory with specifications and savings. Click the Item Description to view Thermal Images.

#DescriptionPipeQtyTemp °FInv. Ins.Upg. Ins.Inv ThkUpg ThkCurrent $/yrUpgraded $/yrSavings $/yrHeat kBtu/yrCO₂ MT/yr
Thermal Imaging

Infrared and visible-light photo pairs for each assessed equipment item.

141608

· Mec room 138 · Ref: 141608

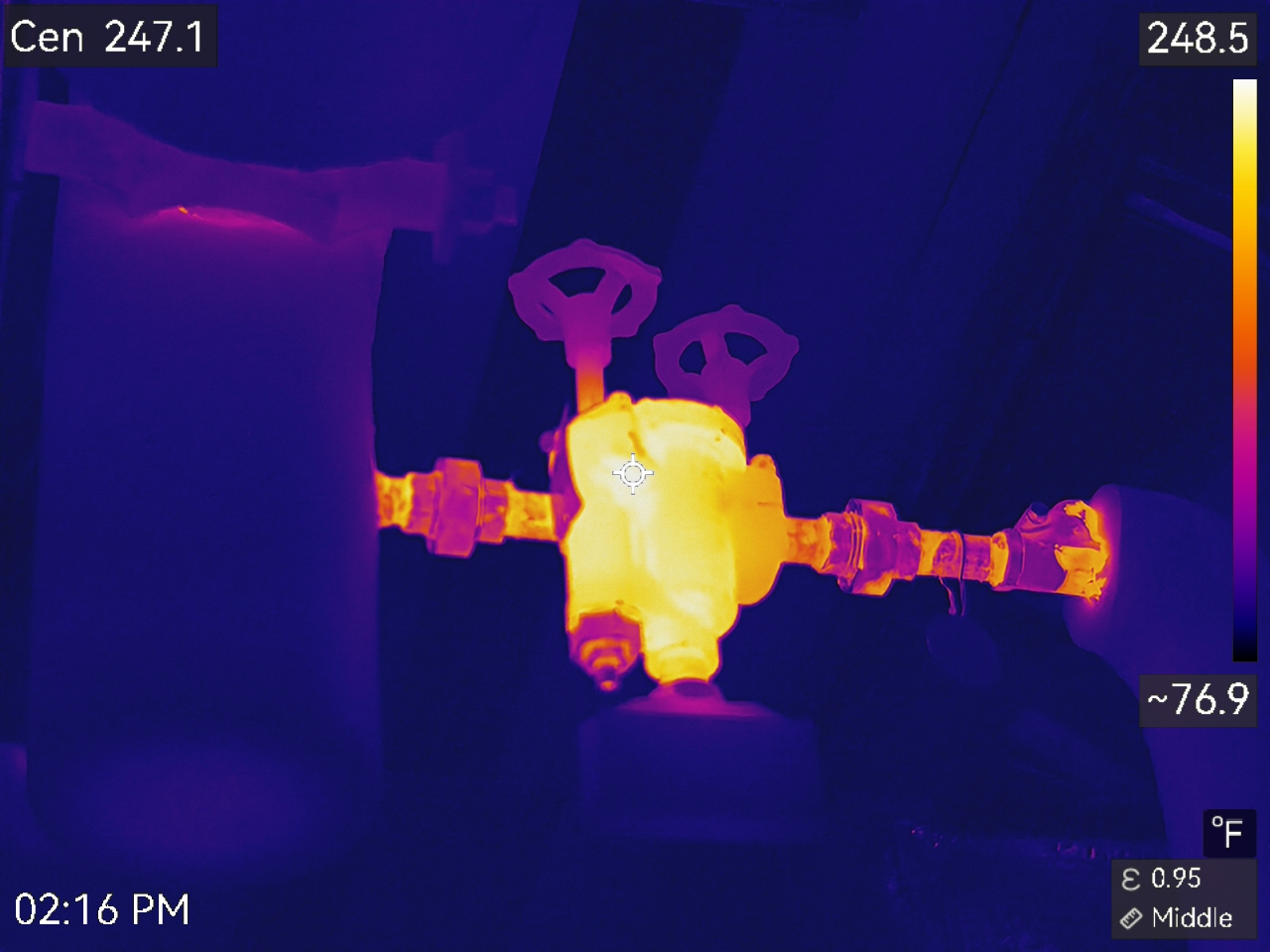

Infrared
IR: Ref 141608 - IR
Ref 141608 - IR

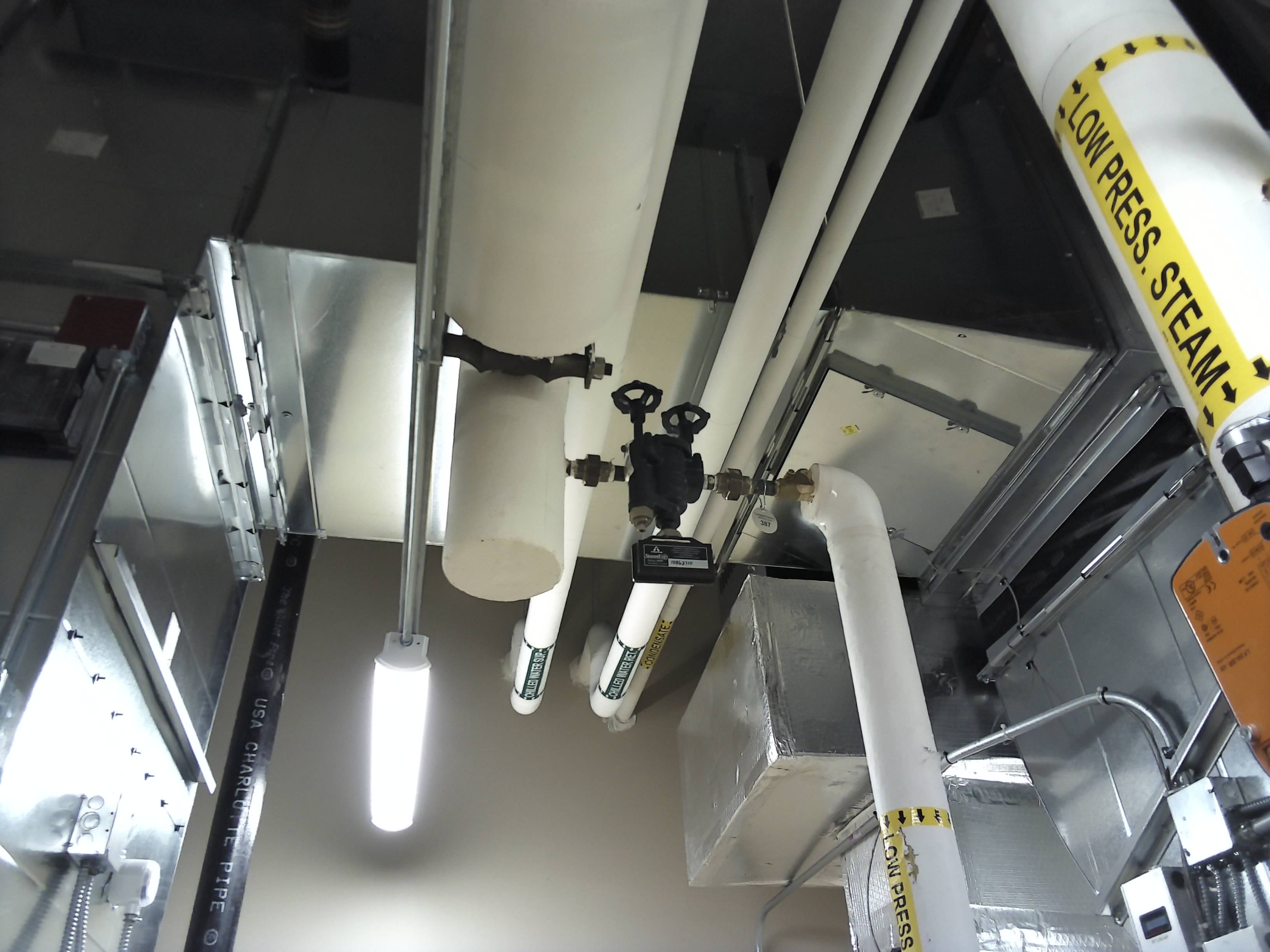

Visible
VIS: Ref 141608 - VIS
Ref 141608 - VIS

142202

· Mech room 025 · Ref: 142202

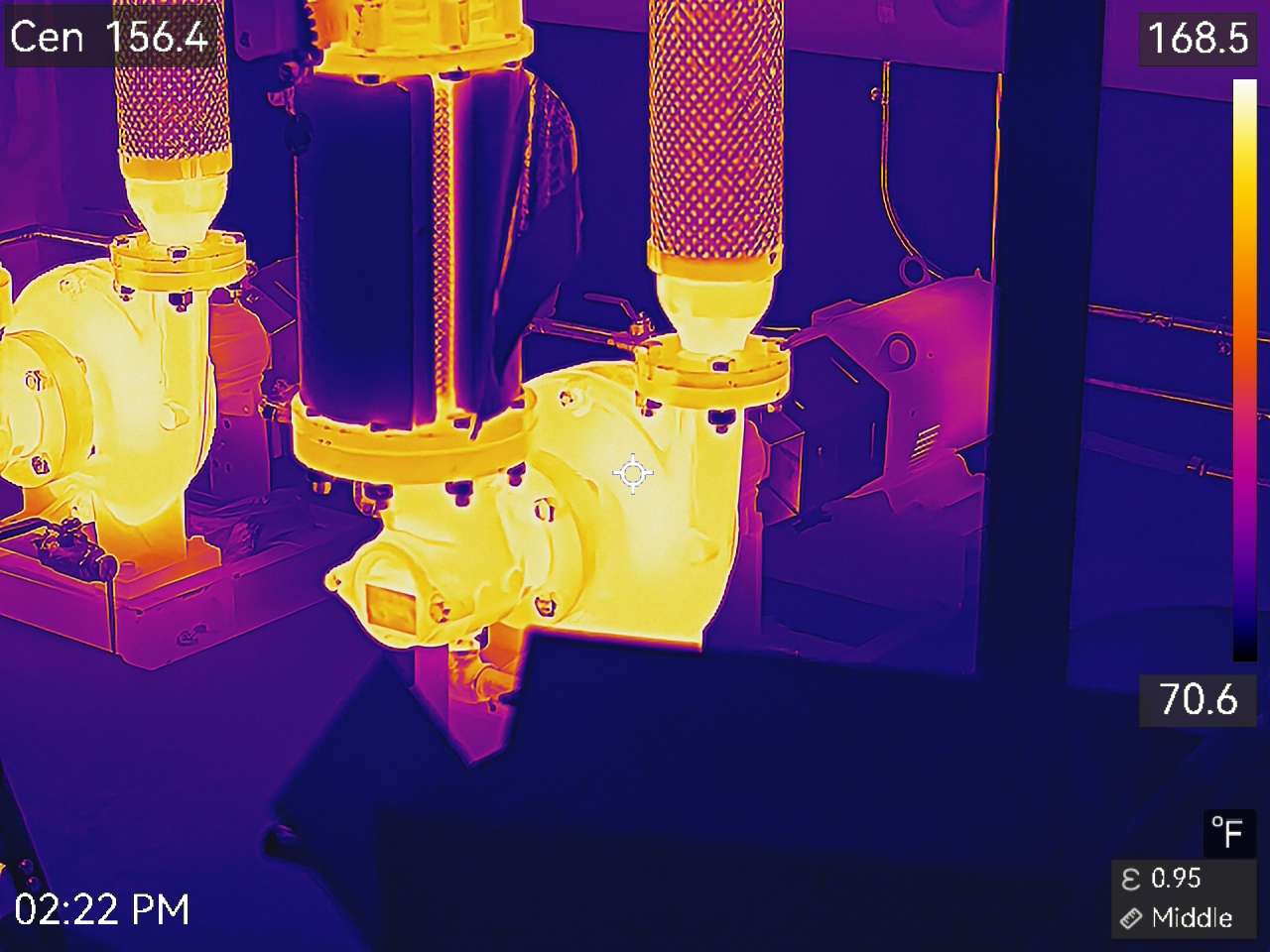

Infrared
IR: Ref 142202 - IR

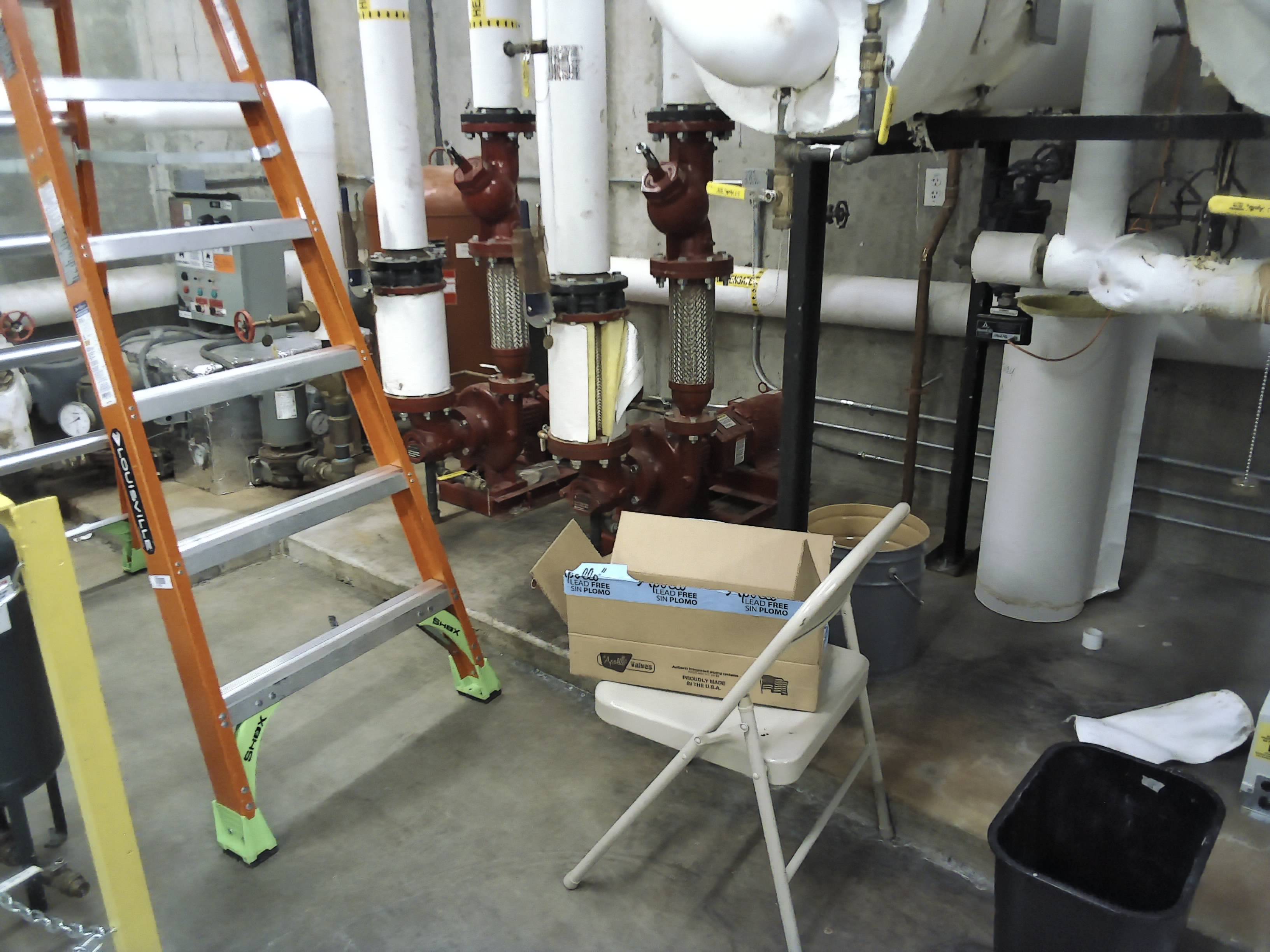

Ref 142202 - IR
Visible
VIS: Ref 142202 - VIS
Ref 142202 - VIS

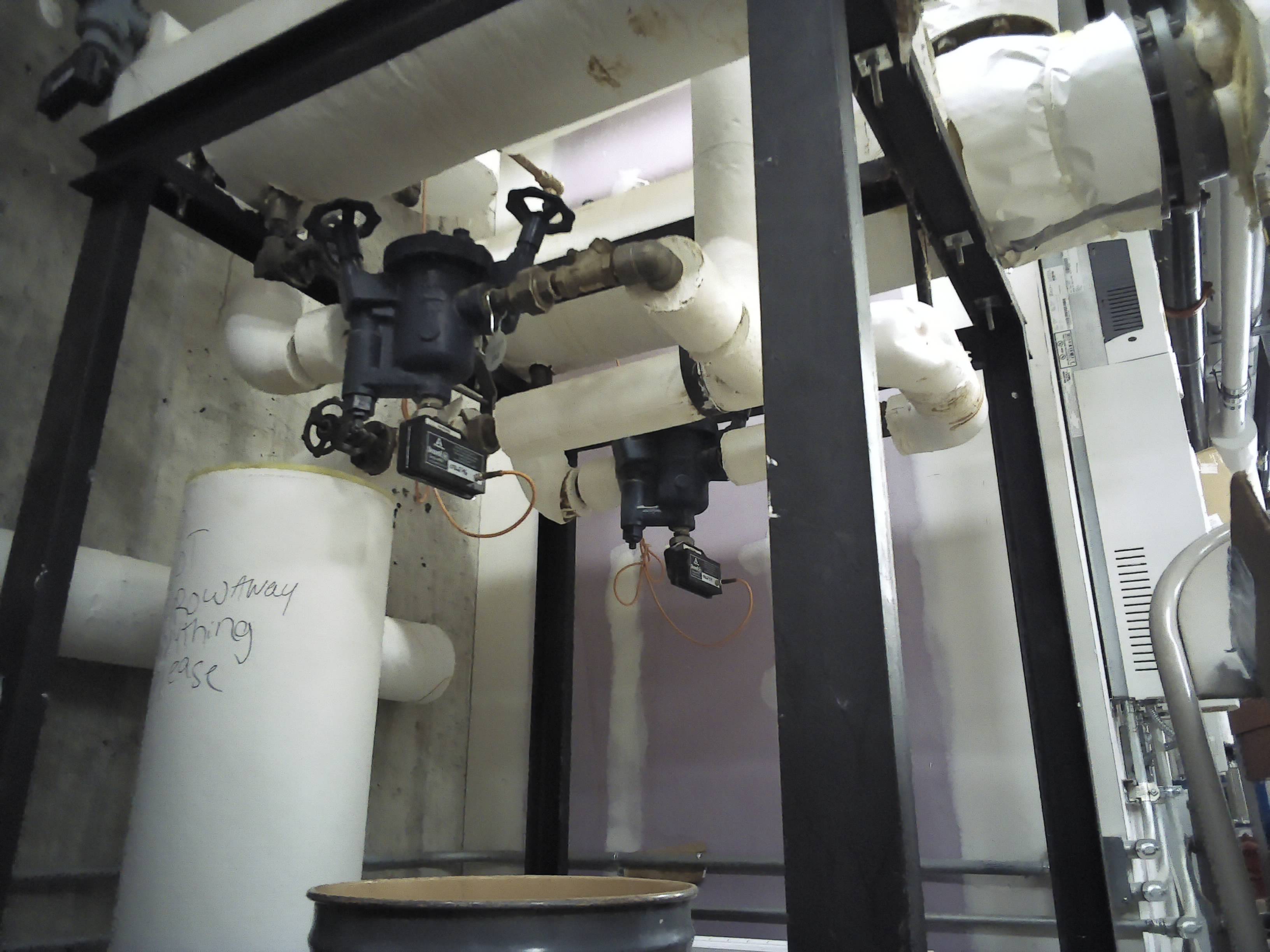

142750

· Mech room 025 · Ref: 142750

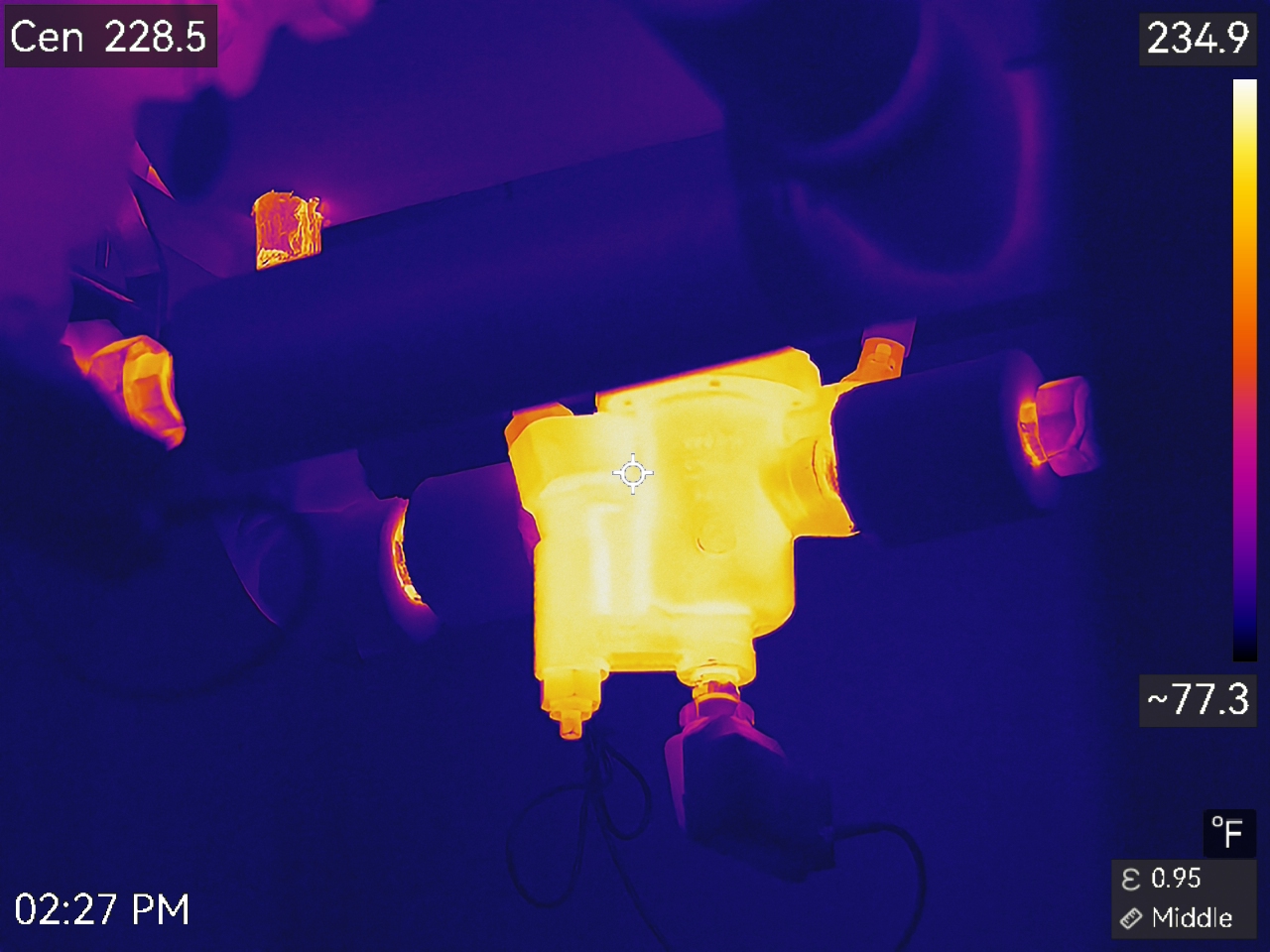

Infrared
IR: Ref 142750 - IR
Ref 142750 - IR
Visible
VIS: Ref 142750 - VIS
Ref 142750 - VIS

142808

· Mech room 025 · Ref: 142808
Infrared

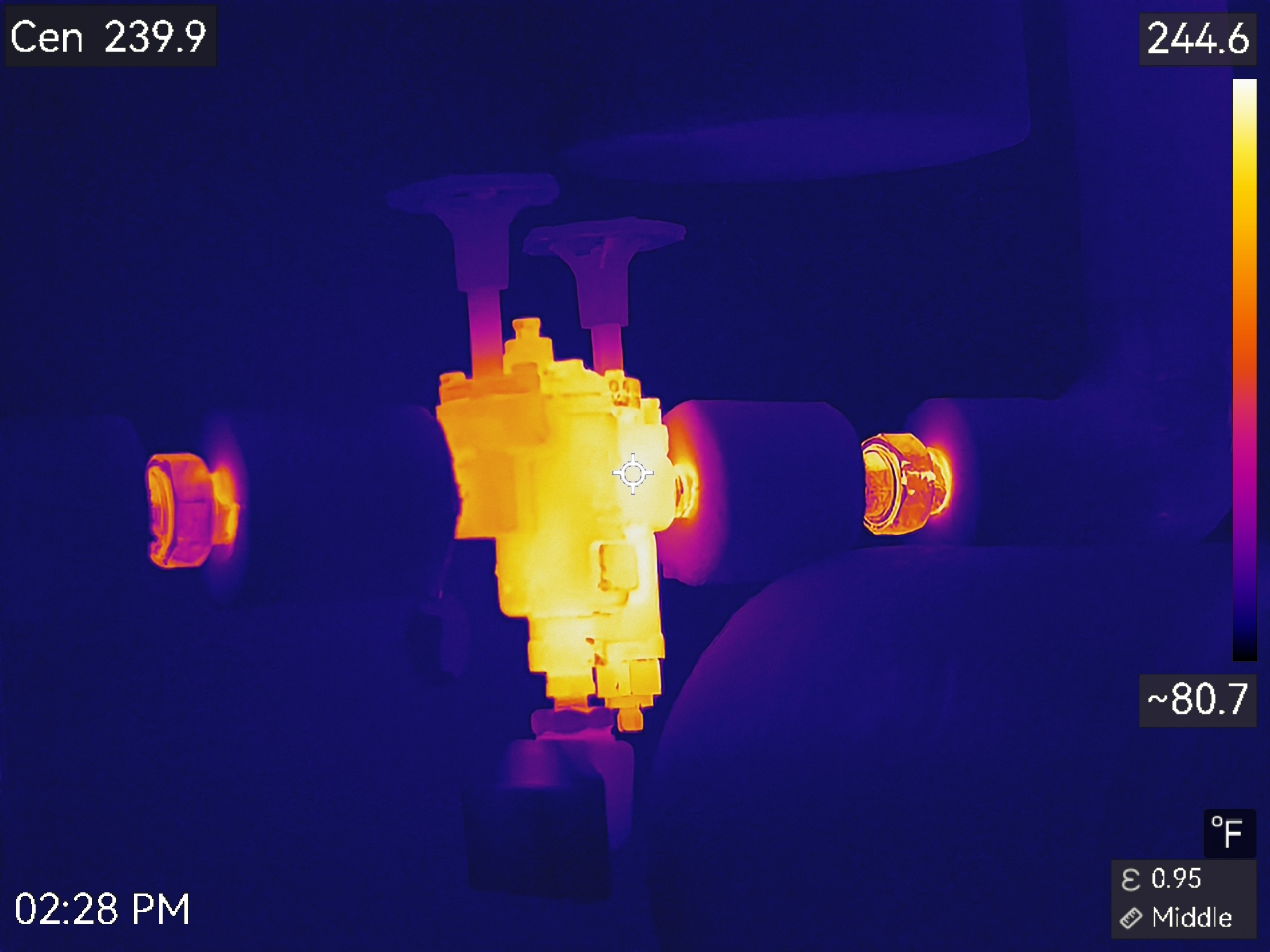

IR: Ref 142808 - IR
Ref 142808 - IR
Visible

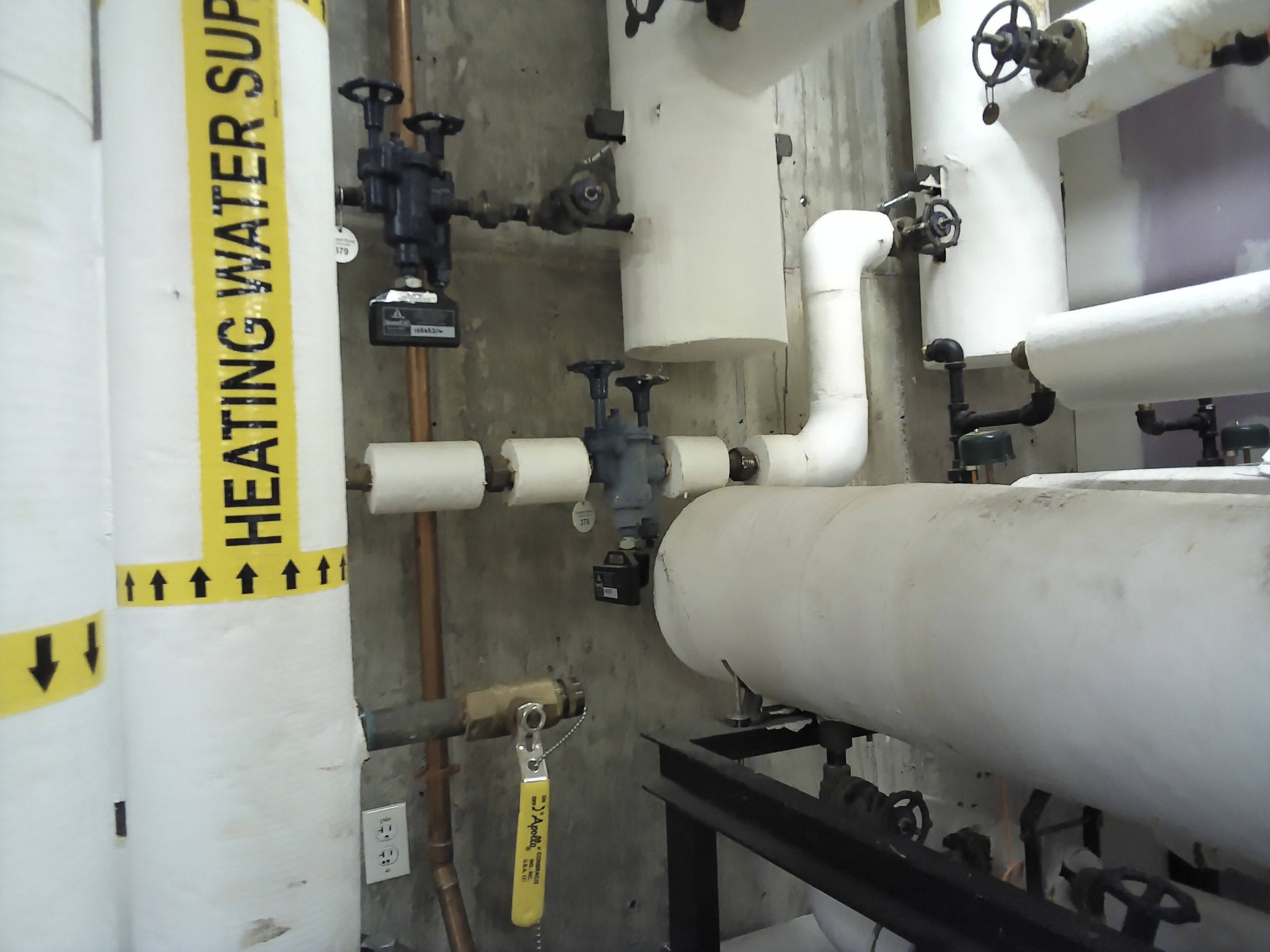

VIS: Ref 142808 - VIS
Ref 142808 - VIS

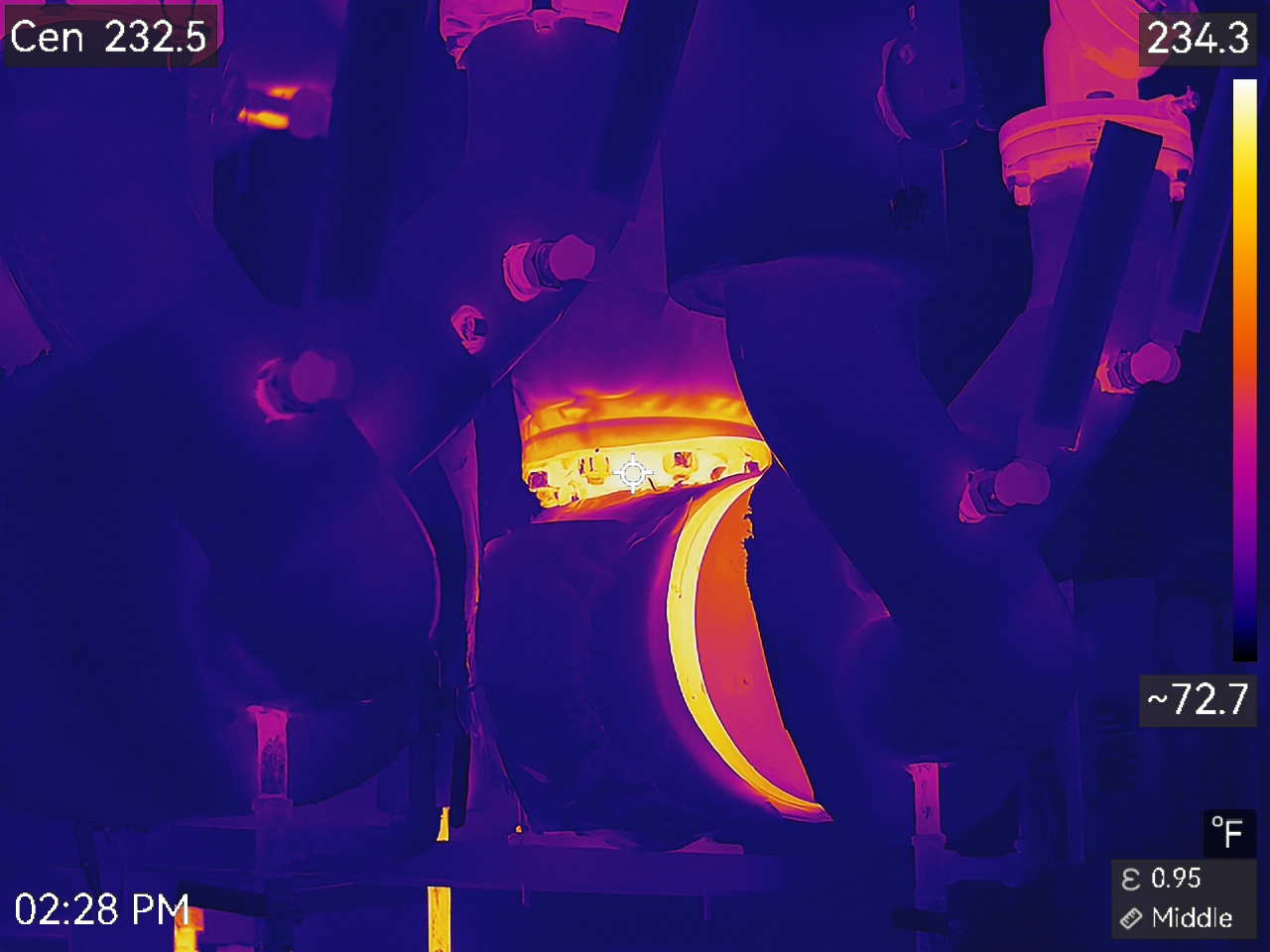

142845

· Mech room 025 · Ref: 142845
Infrared
IR: Ref 142845 - IR

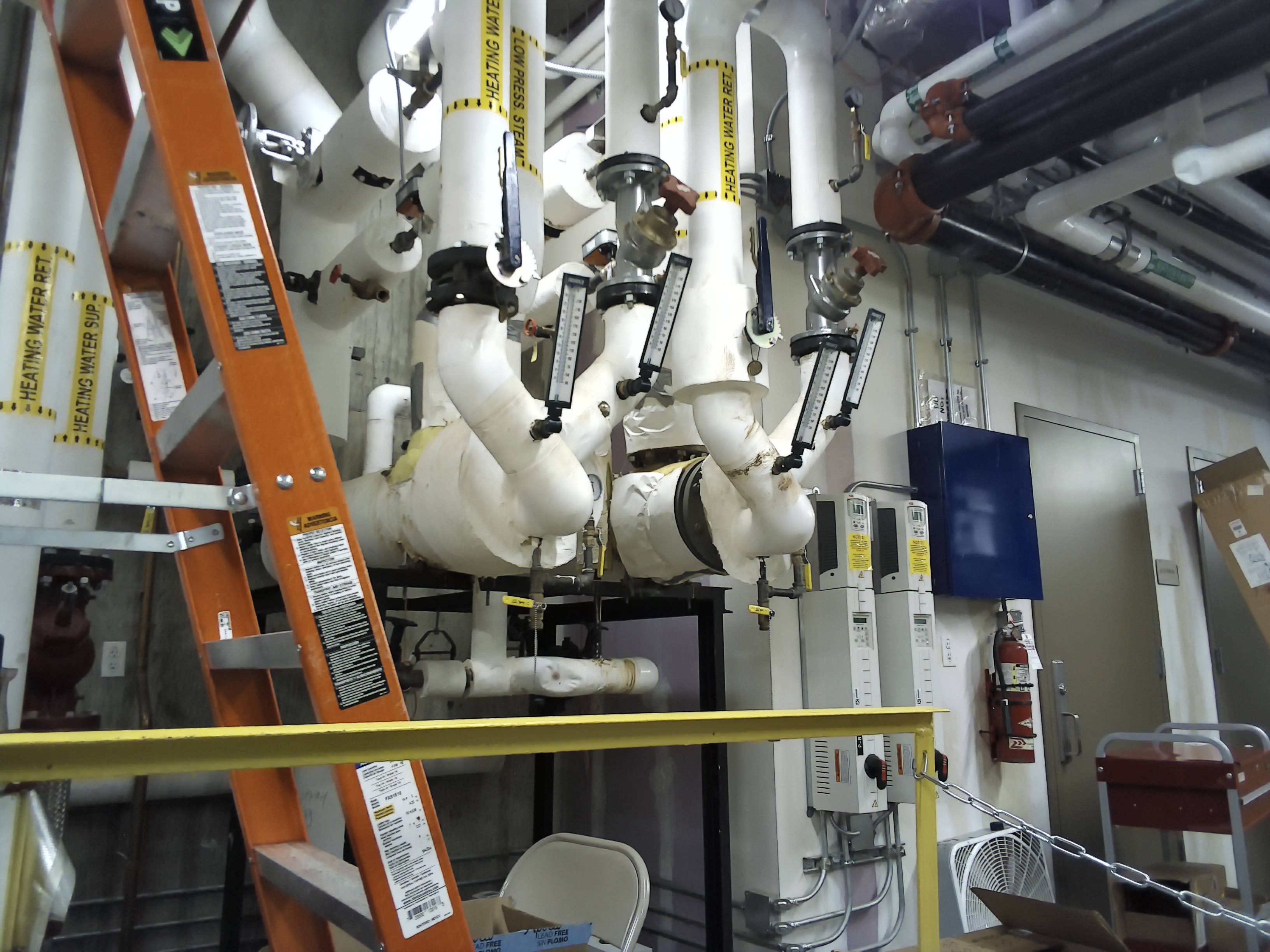

Ref 142845 - IR
Visible
VIS: Ref 142845 - VIS
Ref 142845 - VIS

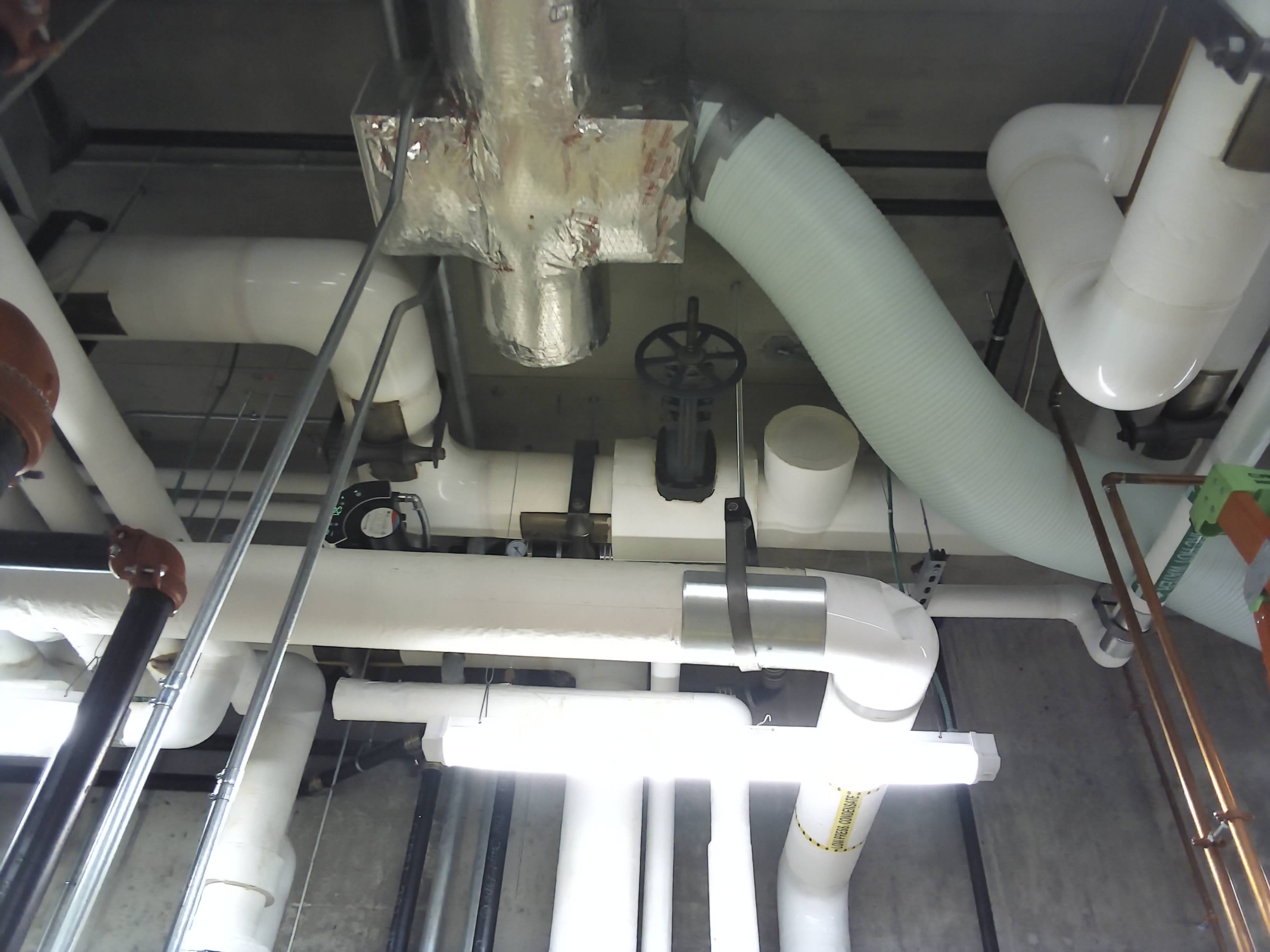

143311

· Mech room 025 · Ref: 143311

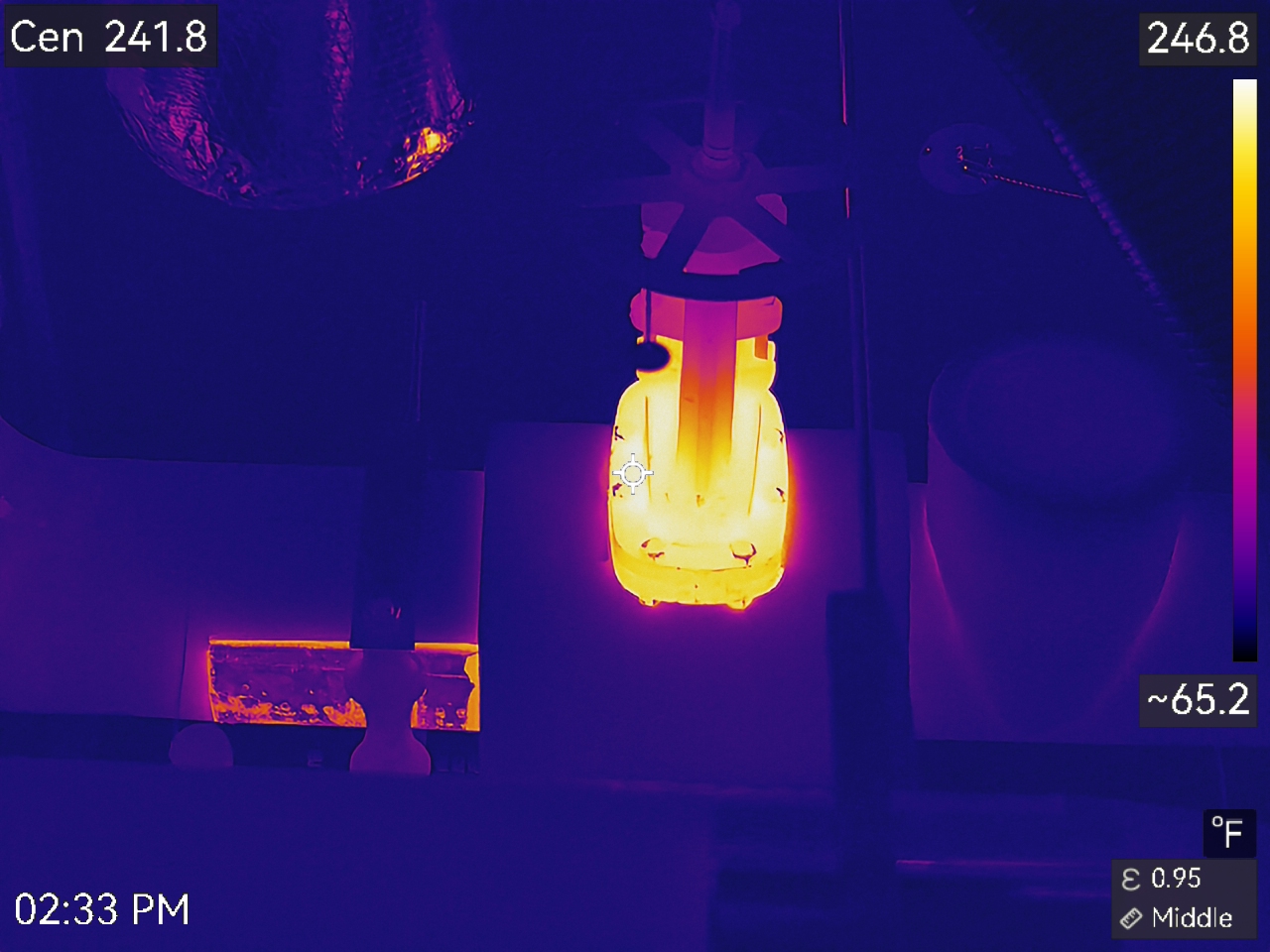

Infrared
IR: Ref 143311 - IR
Ref 143311 - IR
Visible
VIS: Ref 143311 - VIS
Ref 143311 - VIS

143435

· Mech room 025 · Ref: 143435
Infrared

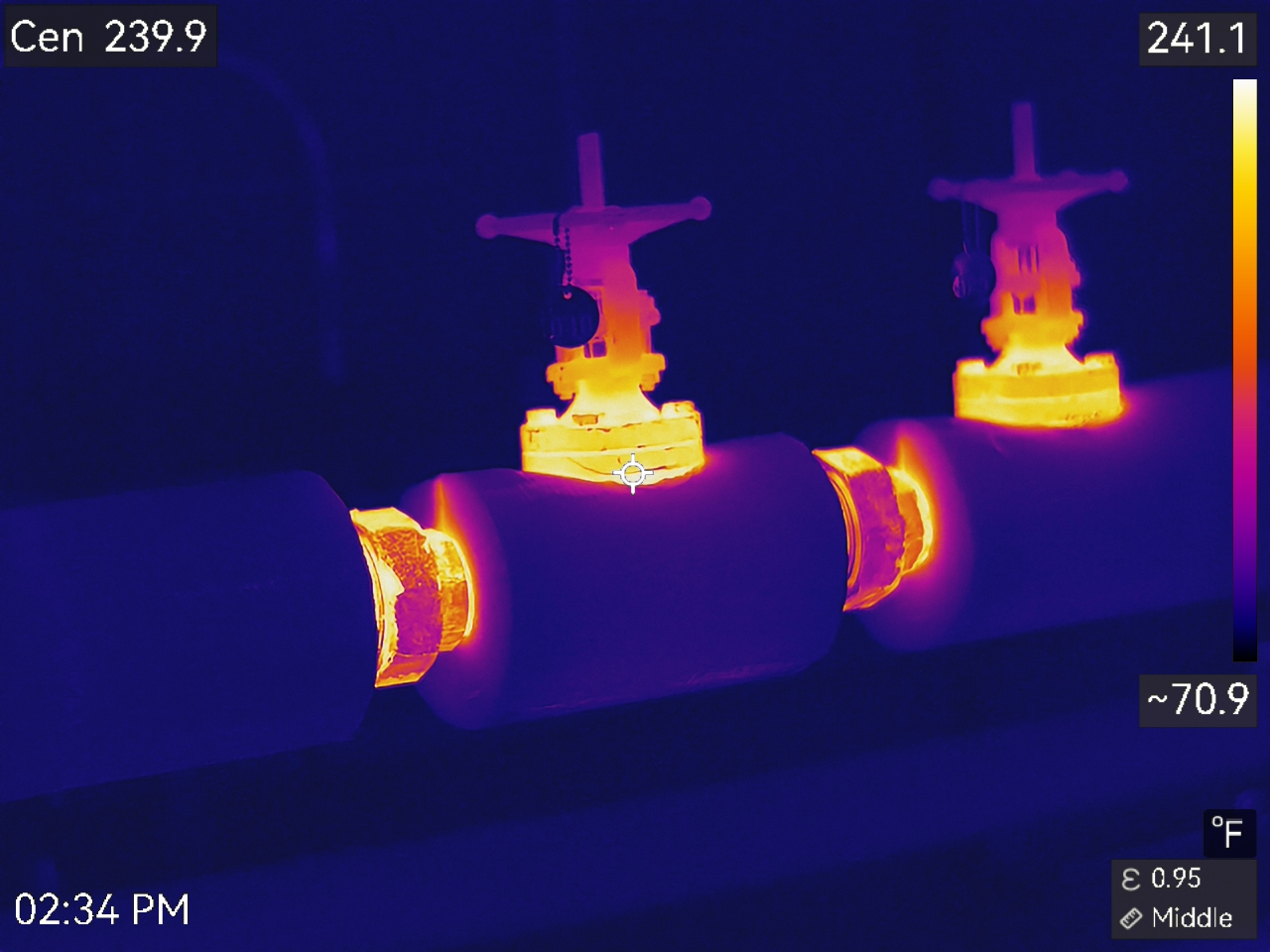

IR: Ref 143435 - IR
Ref 143435 - IR

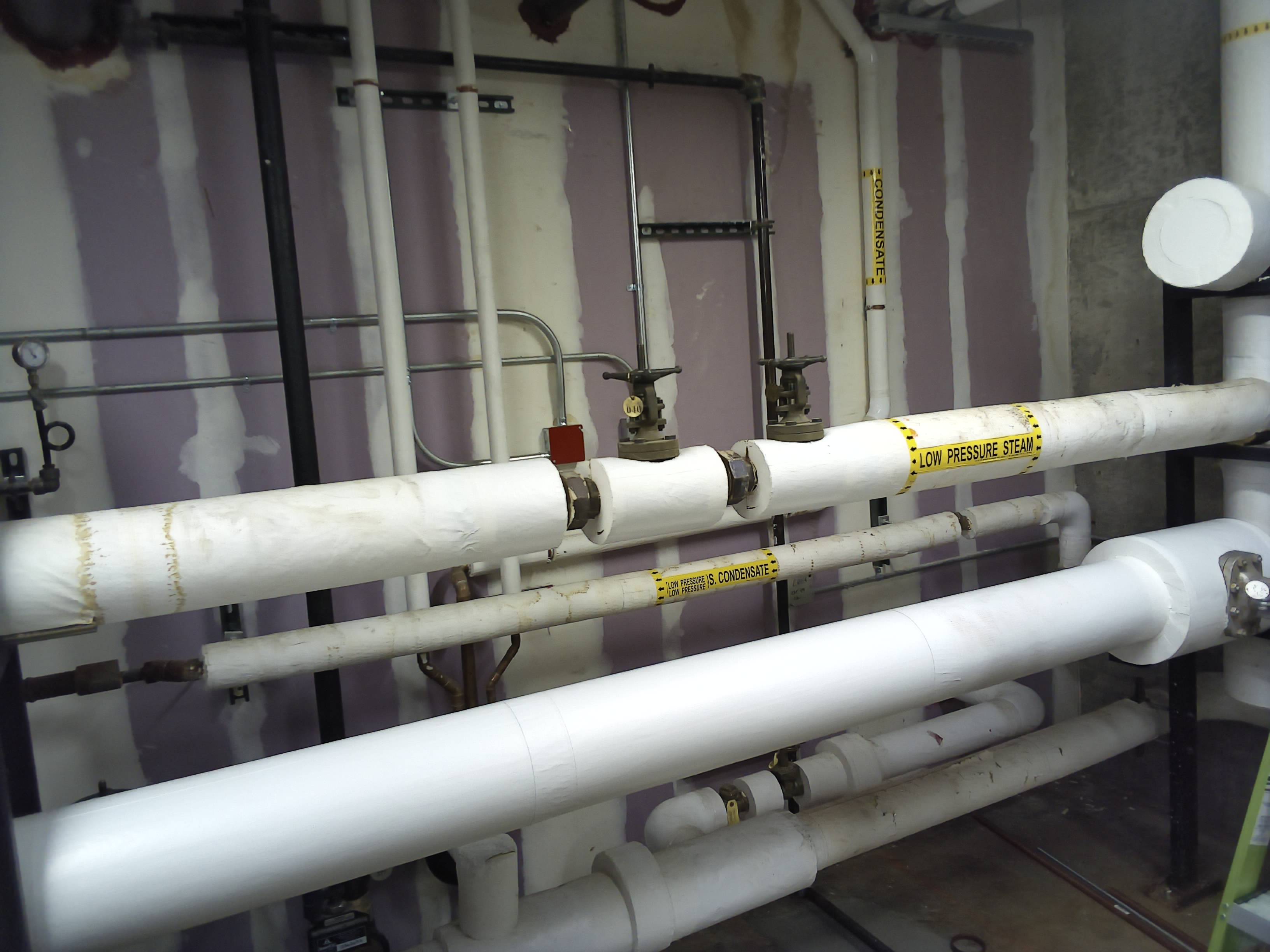

Visible
VIS: Ref 143435 - VIS
Ref 143435 - VIS

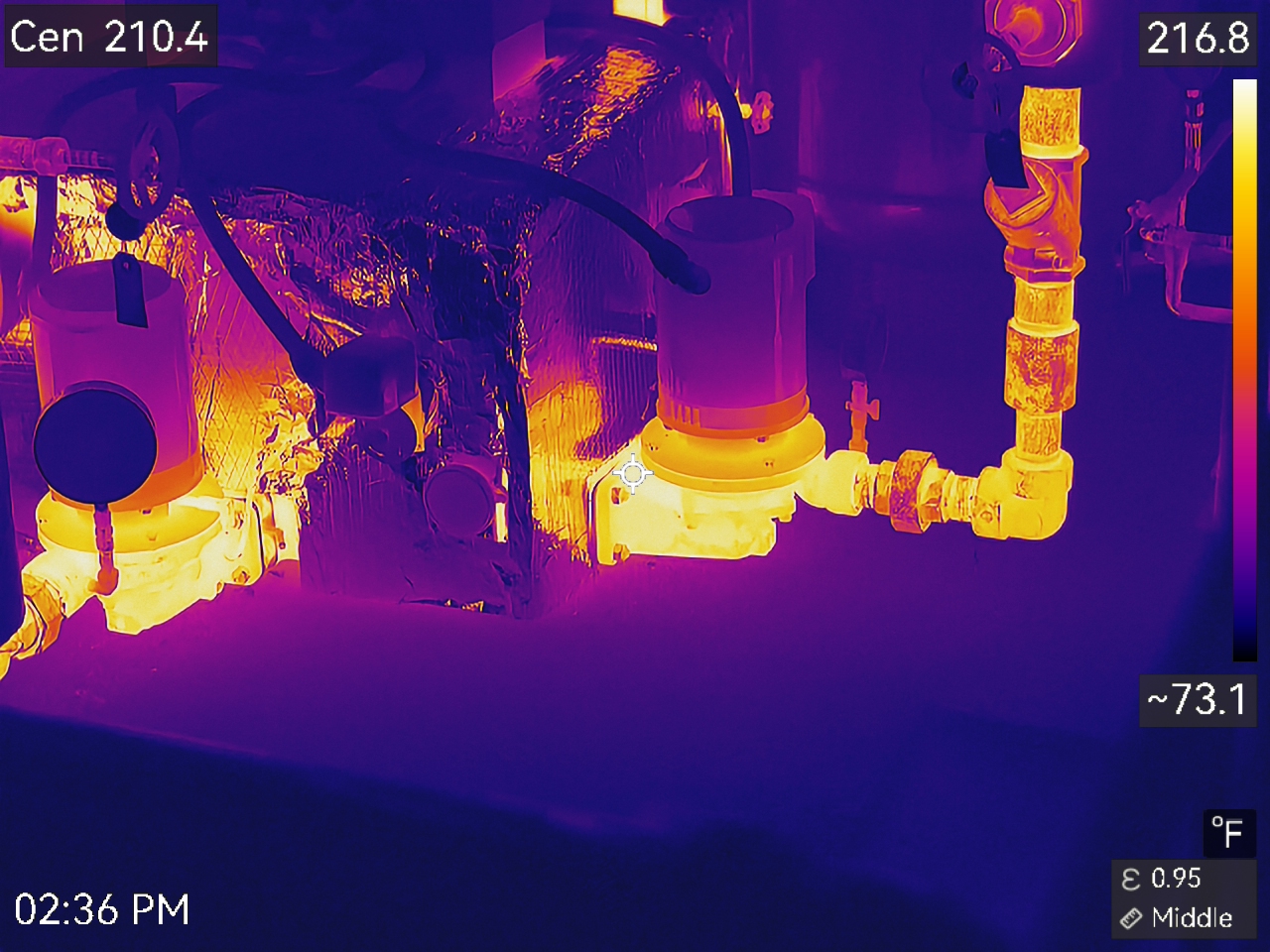

143634

· Mech room 025 · Ref: 143634
Infrared
IR: Ref 143634 - IR

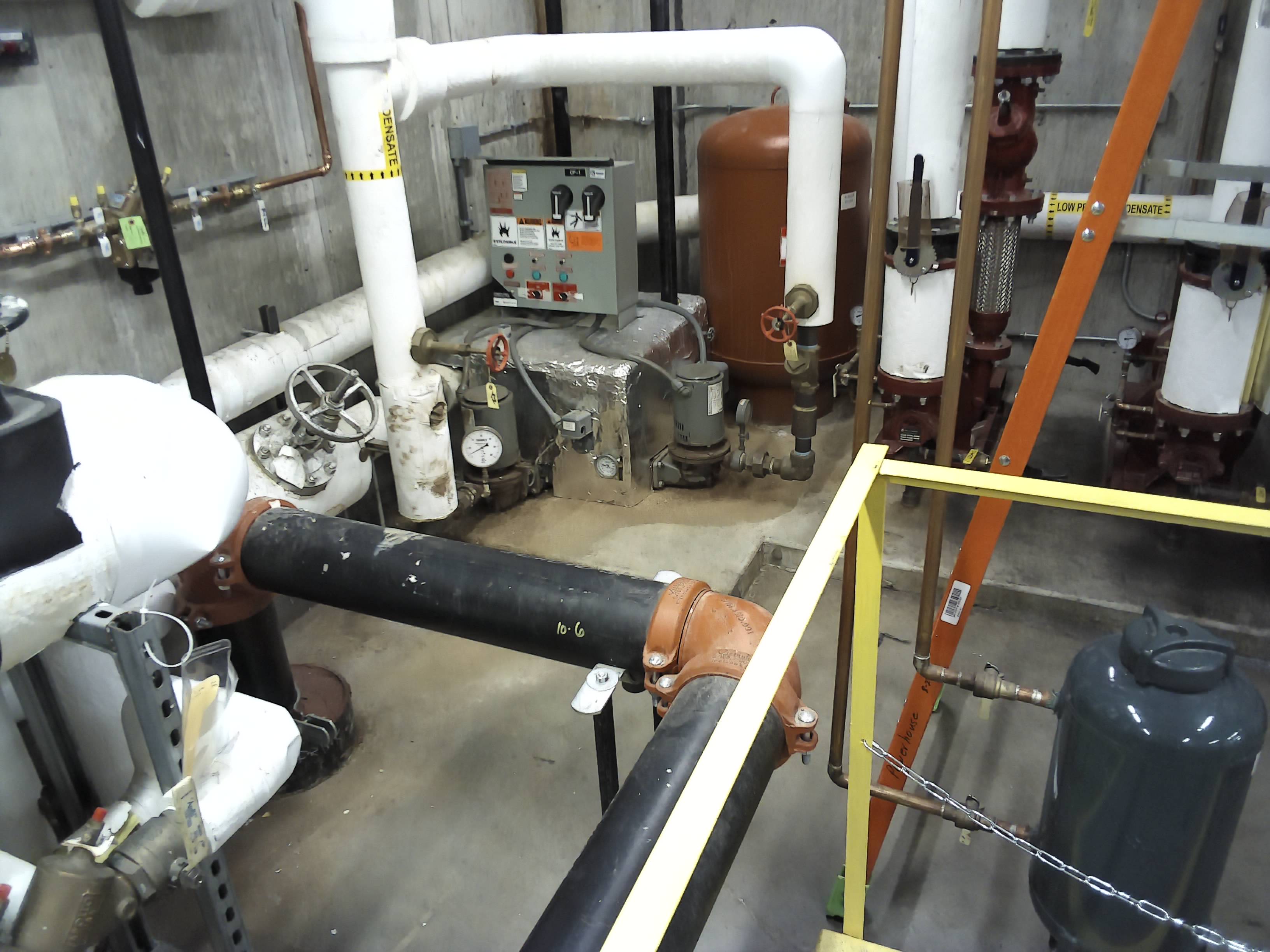

Ref 143634 - IR
Visible
VIS: Ref 143634 - VIS
Ref 143634 - VIS

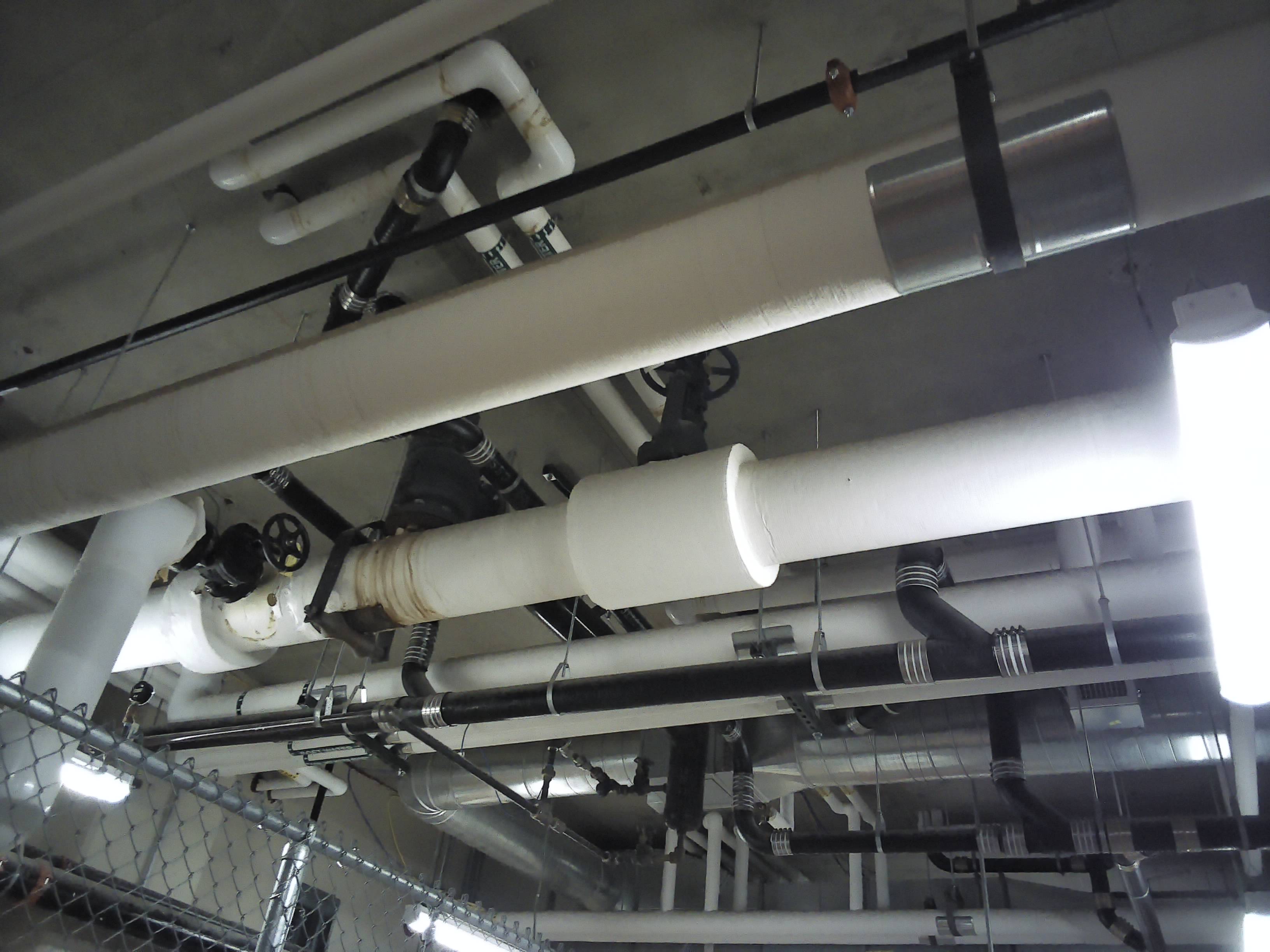

144532

· Mech room 023 · Ref: 144532
Infrared

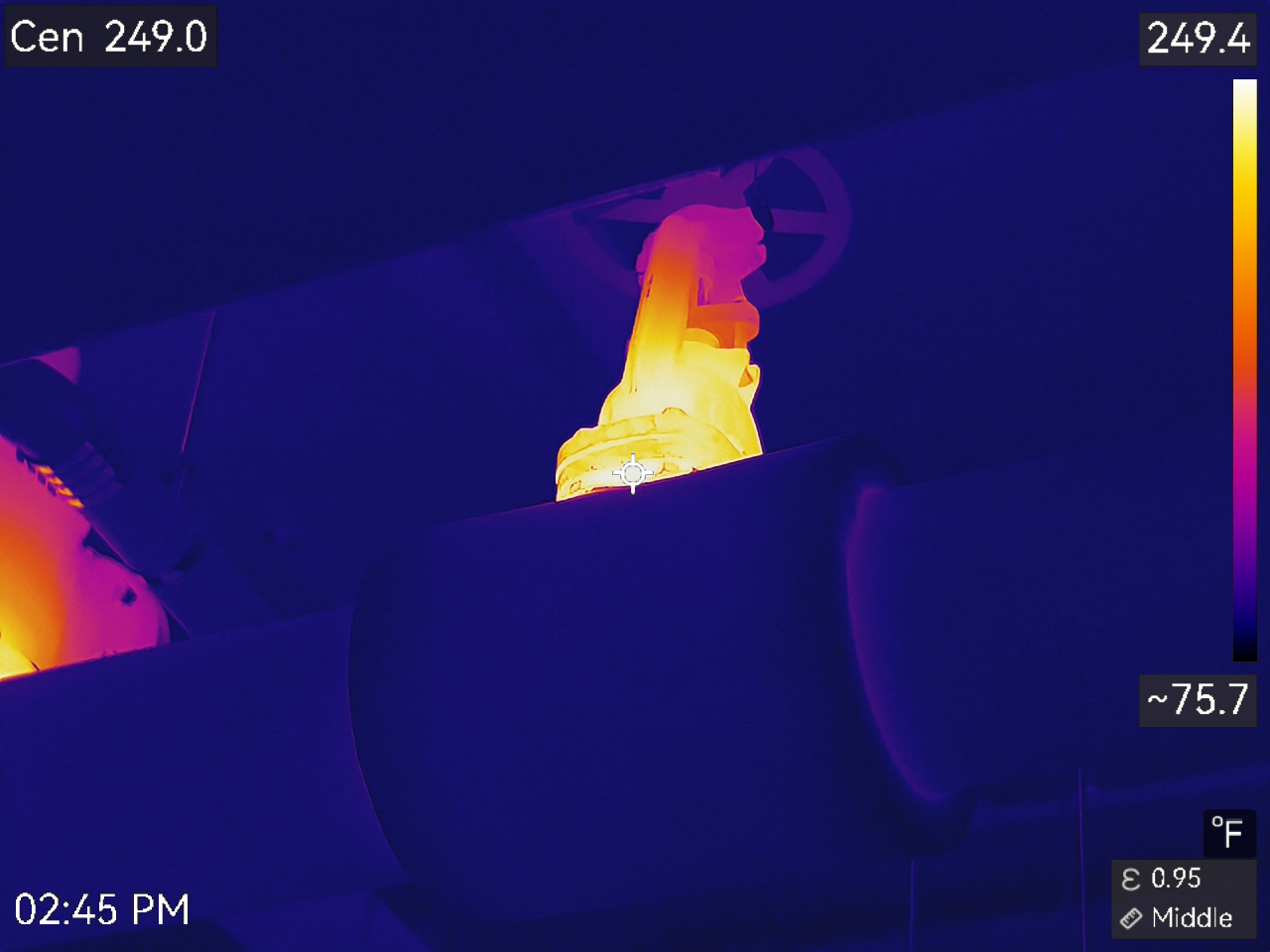

IR: Ref 144532 - IR
Ref 144532 - IR
Visible
VIS: Ref 144532 - VIS
Ref 144532 - VIS

144807

· Mech room 023 · Ref: 144807

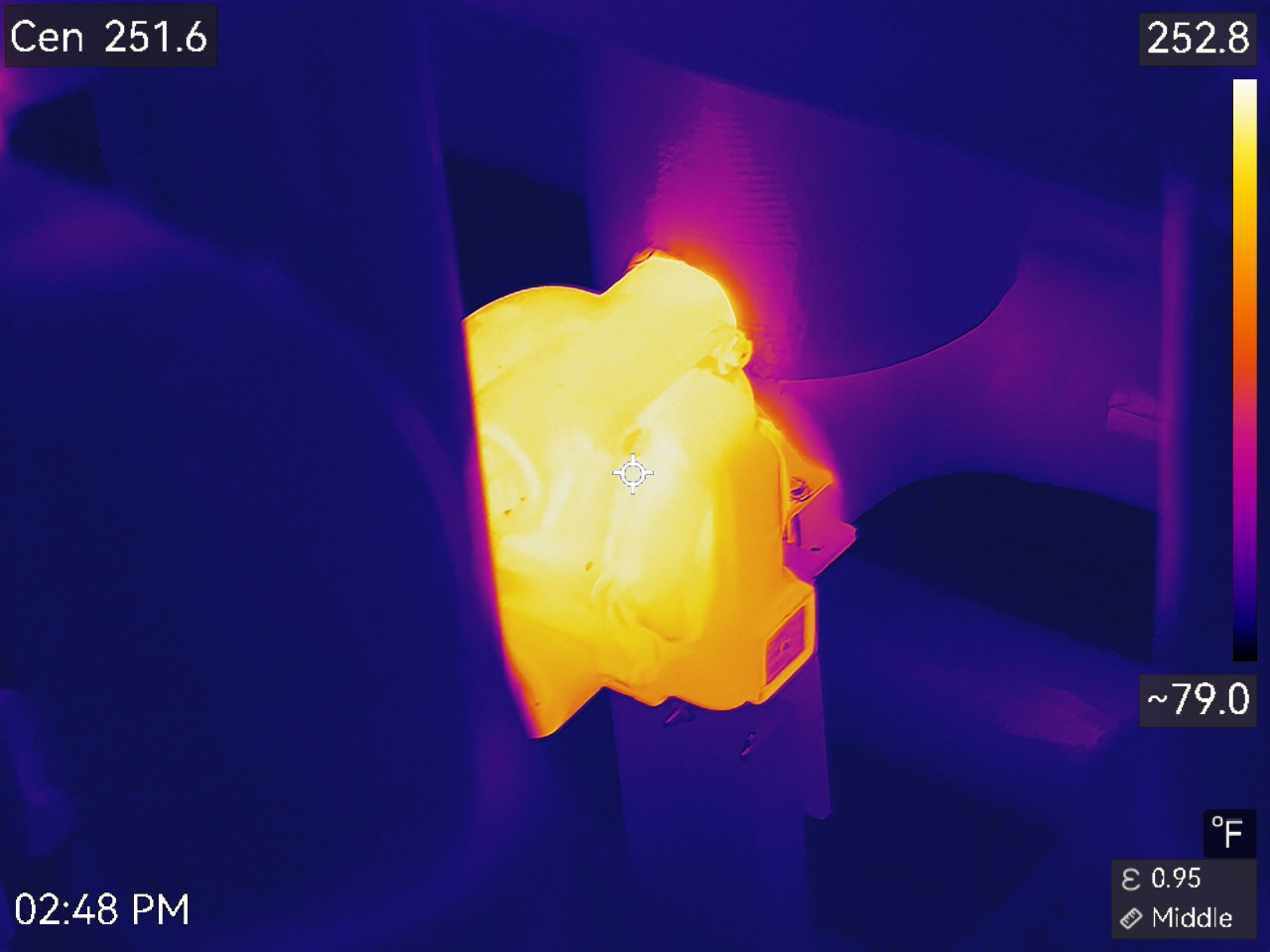

Infrared
IR: Ref 144807 - IR
Ref 144807 - IR
Visible

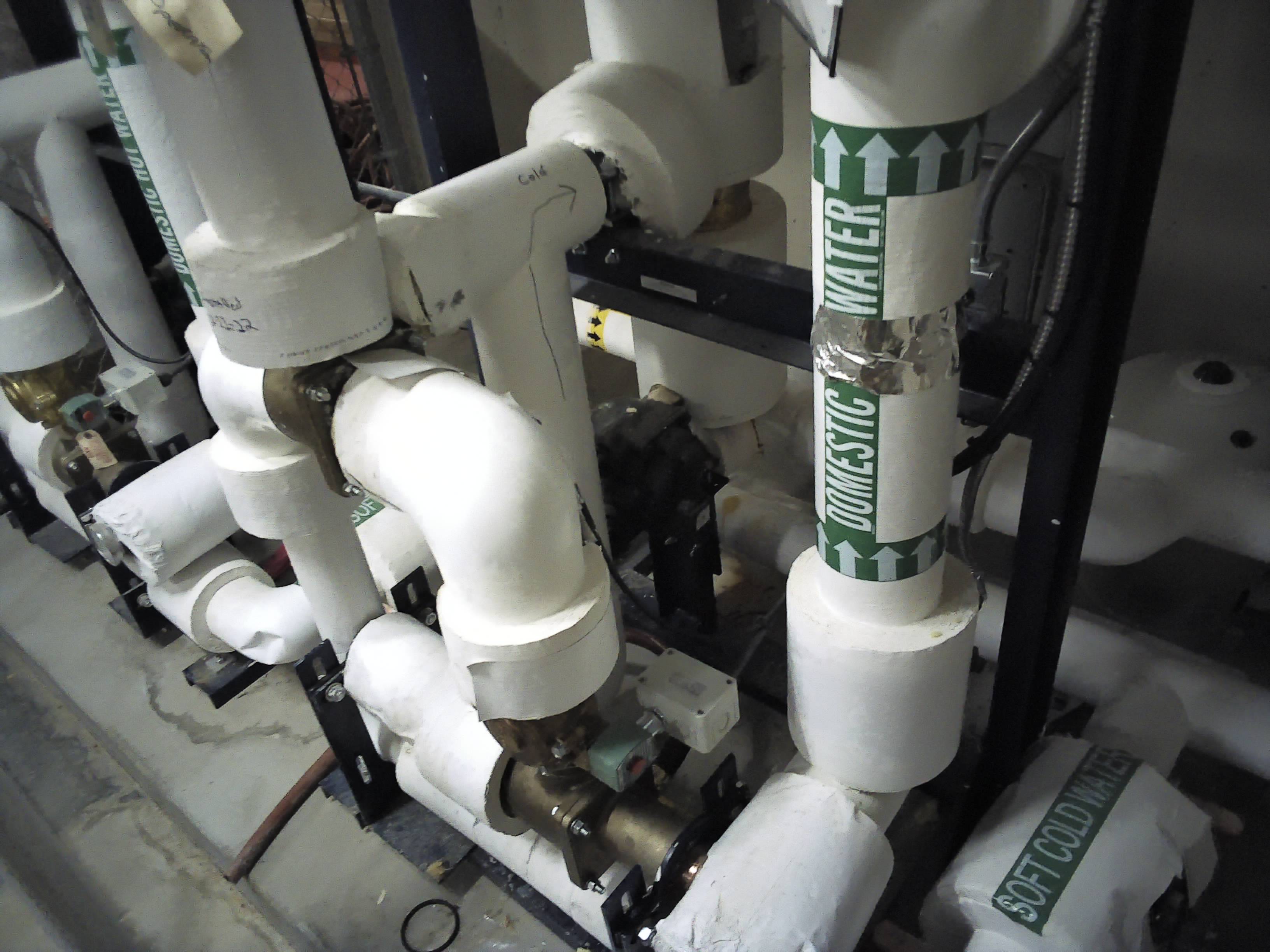

VIS: Ref 144807 - VIS
Ref 144807 - VIS

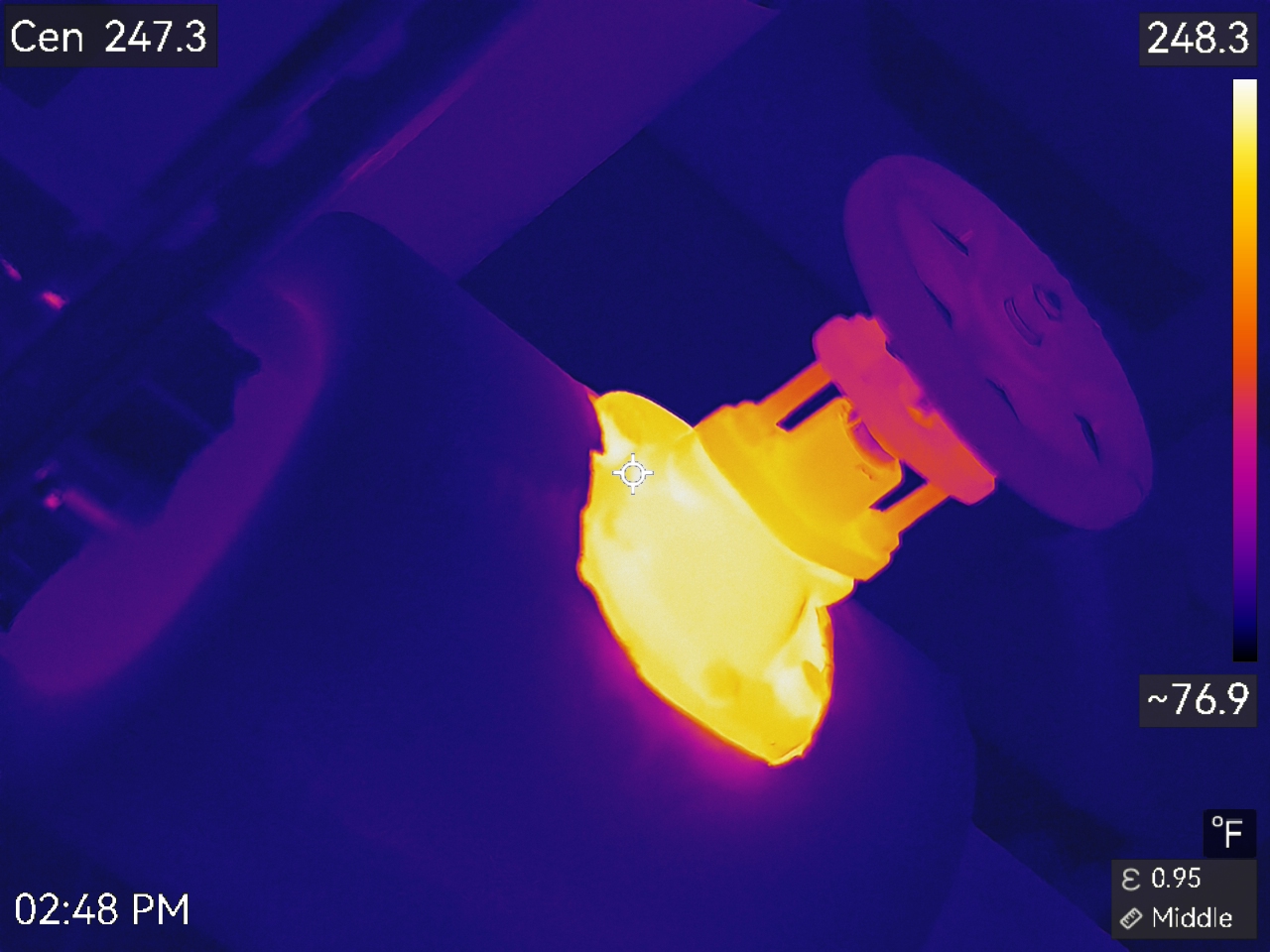

144847

· Mech room 023 · Ref: 144847
Infrared
IR: Ref 144847 - IR

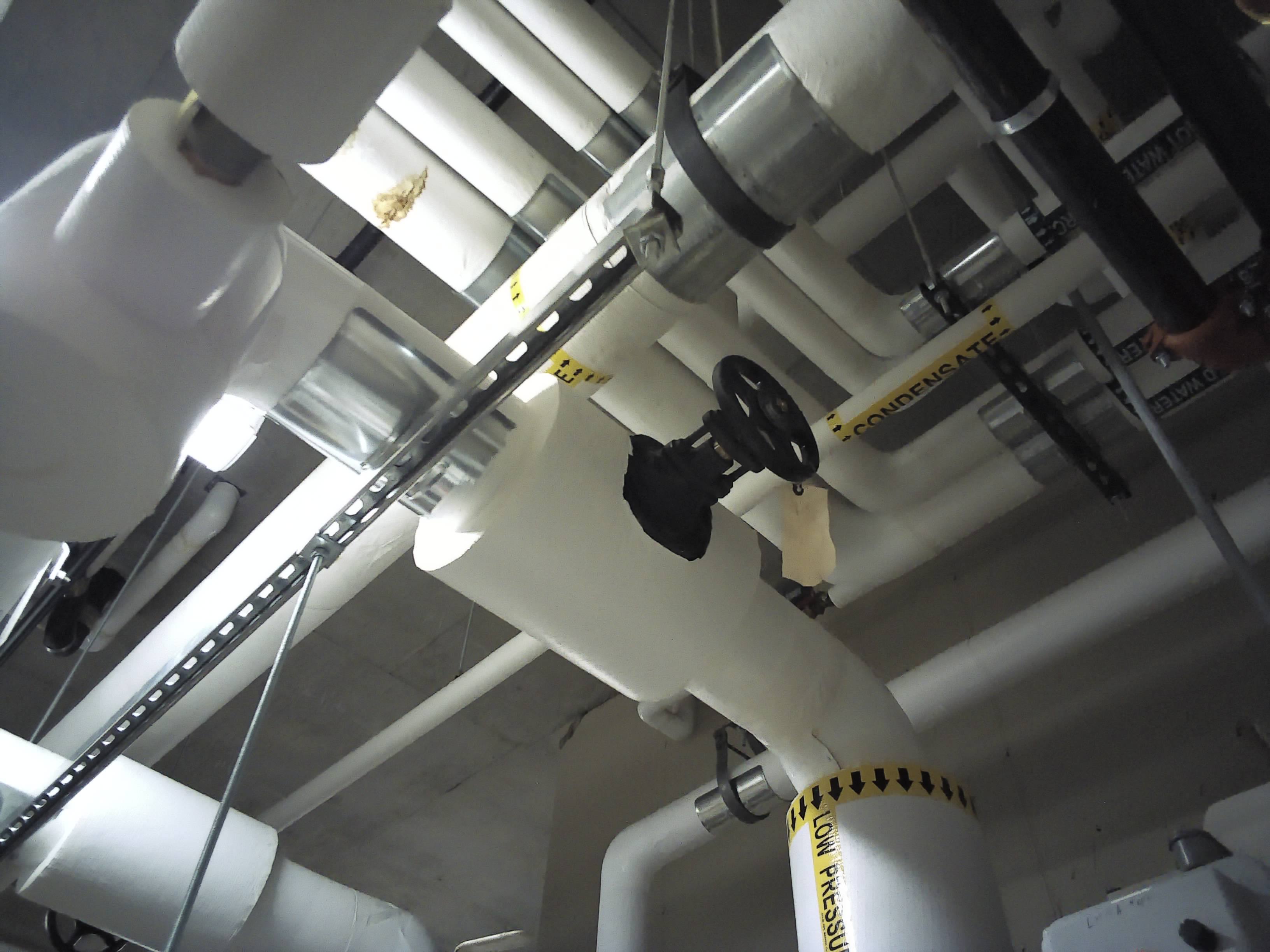

Ref 144847 - IR
Visible
VIS: Ref 144847 - VIS
Ref 144847 - VIS

150853

· Mec room MP · Ref: 150853
Infrared
IR: Ref 150853 - IR
Ref 150853 - IR
Visible

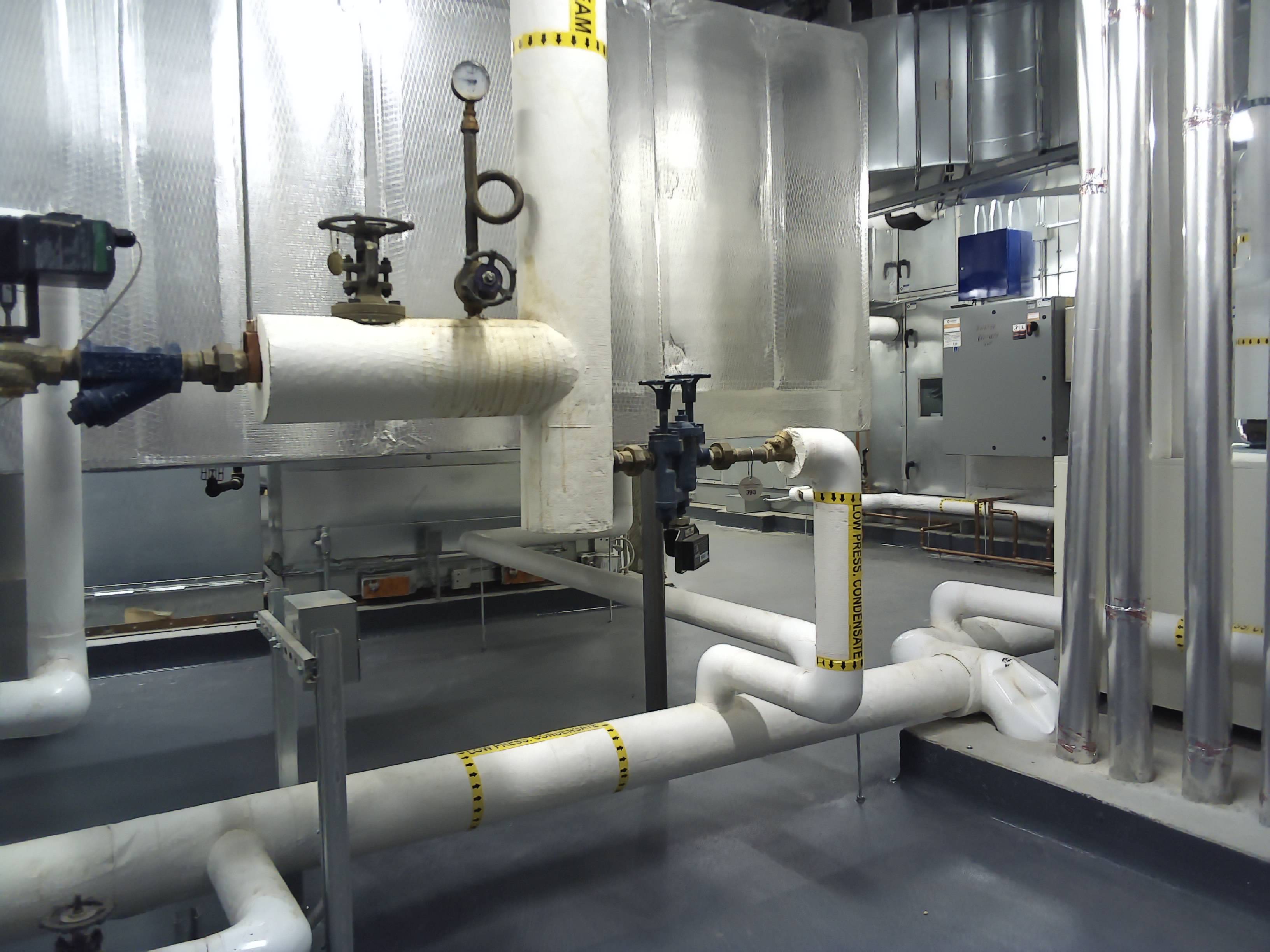

VIS: Ref 150853 - VIS
Ref 150853 - VIS

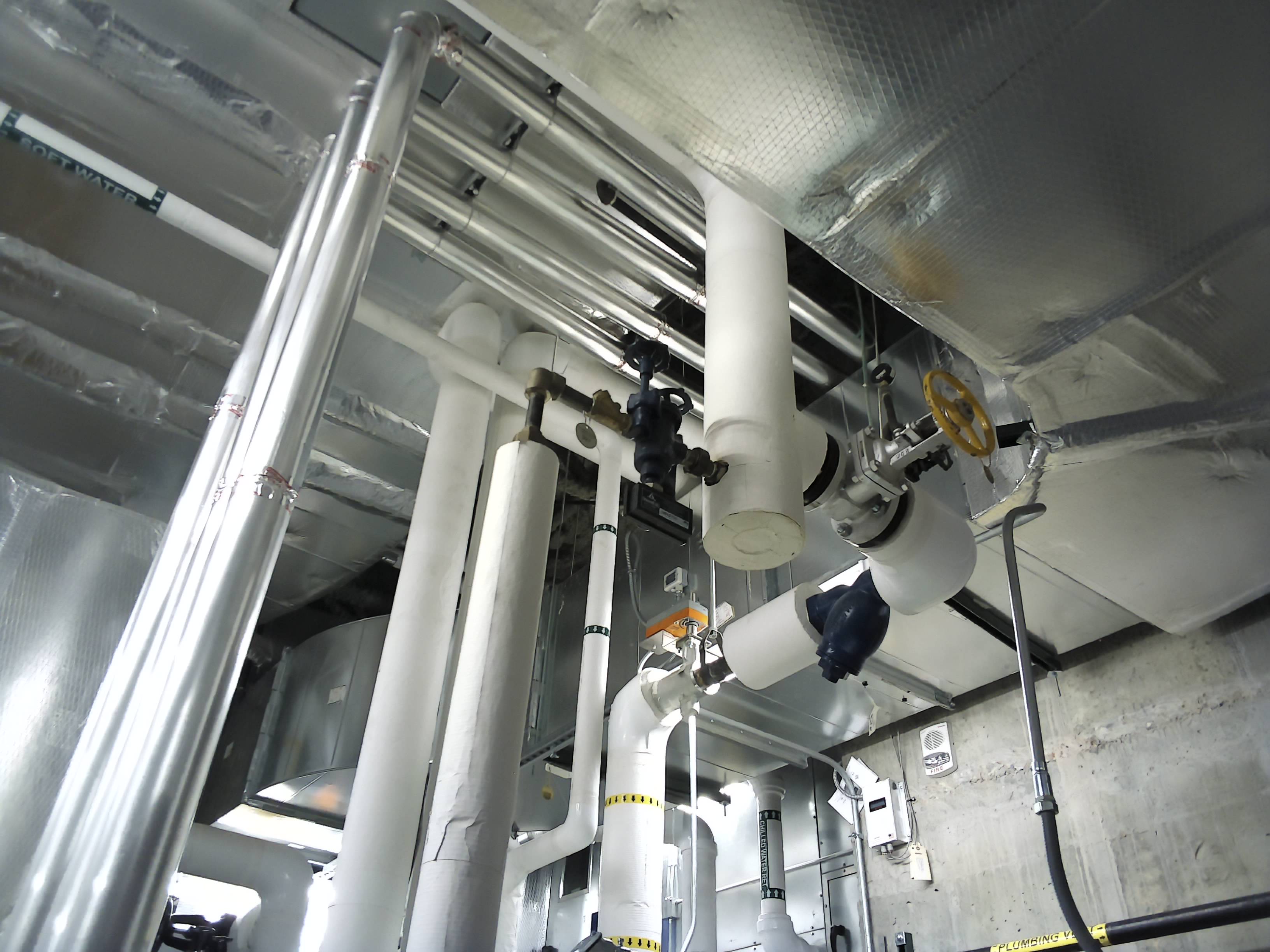

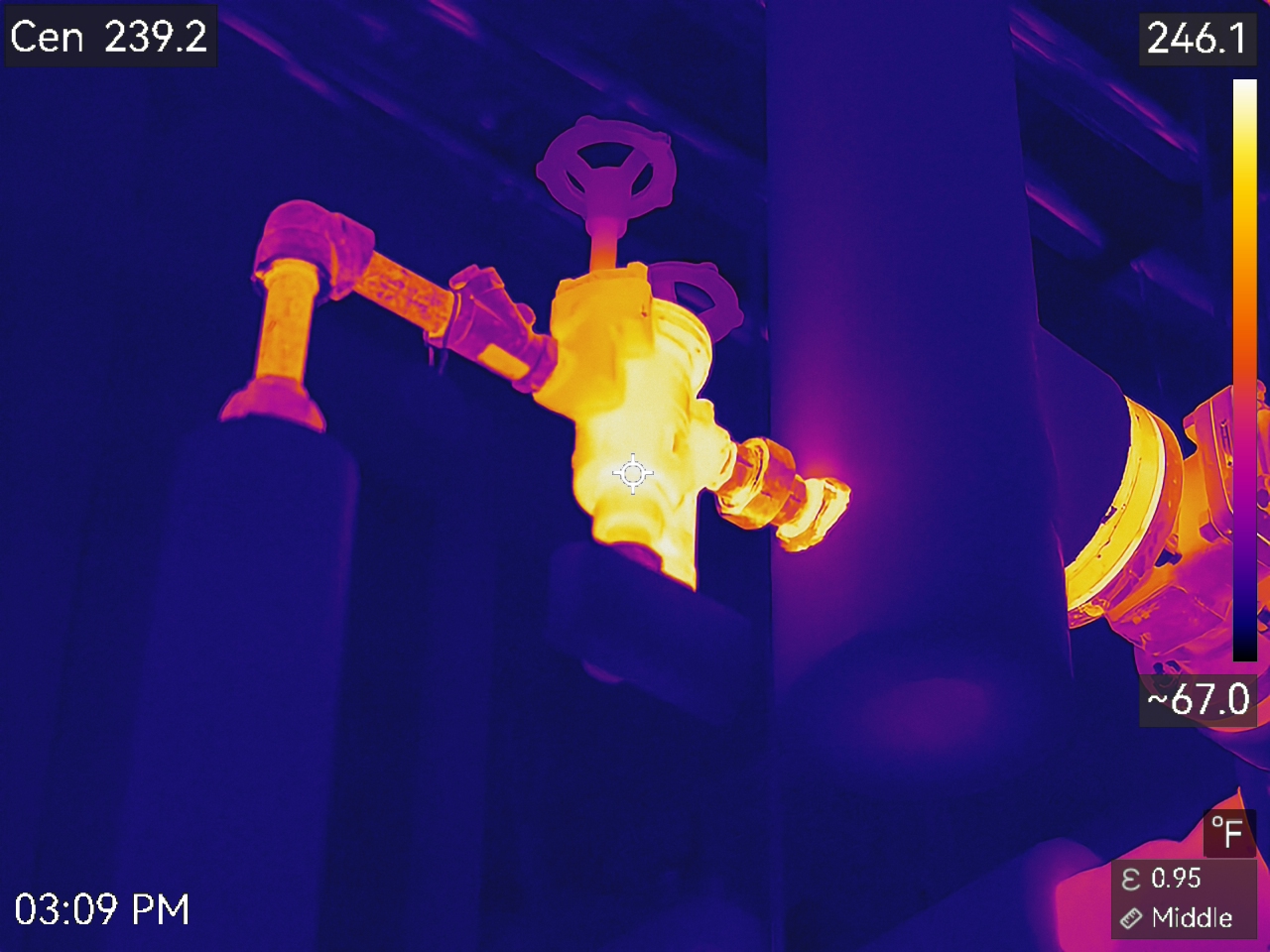

150920

· Mec room MP · Ref: 150920
Infrared
IR: Ref 150920 - IR
Ref 150920 - IR
Visible
VIS: Ref 150920 - VIS
Ref 150920 - VIS

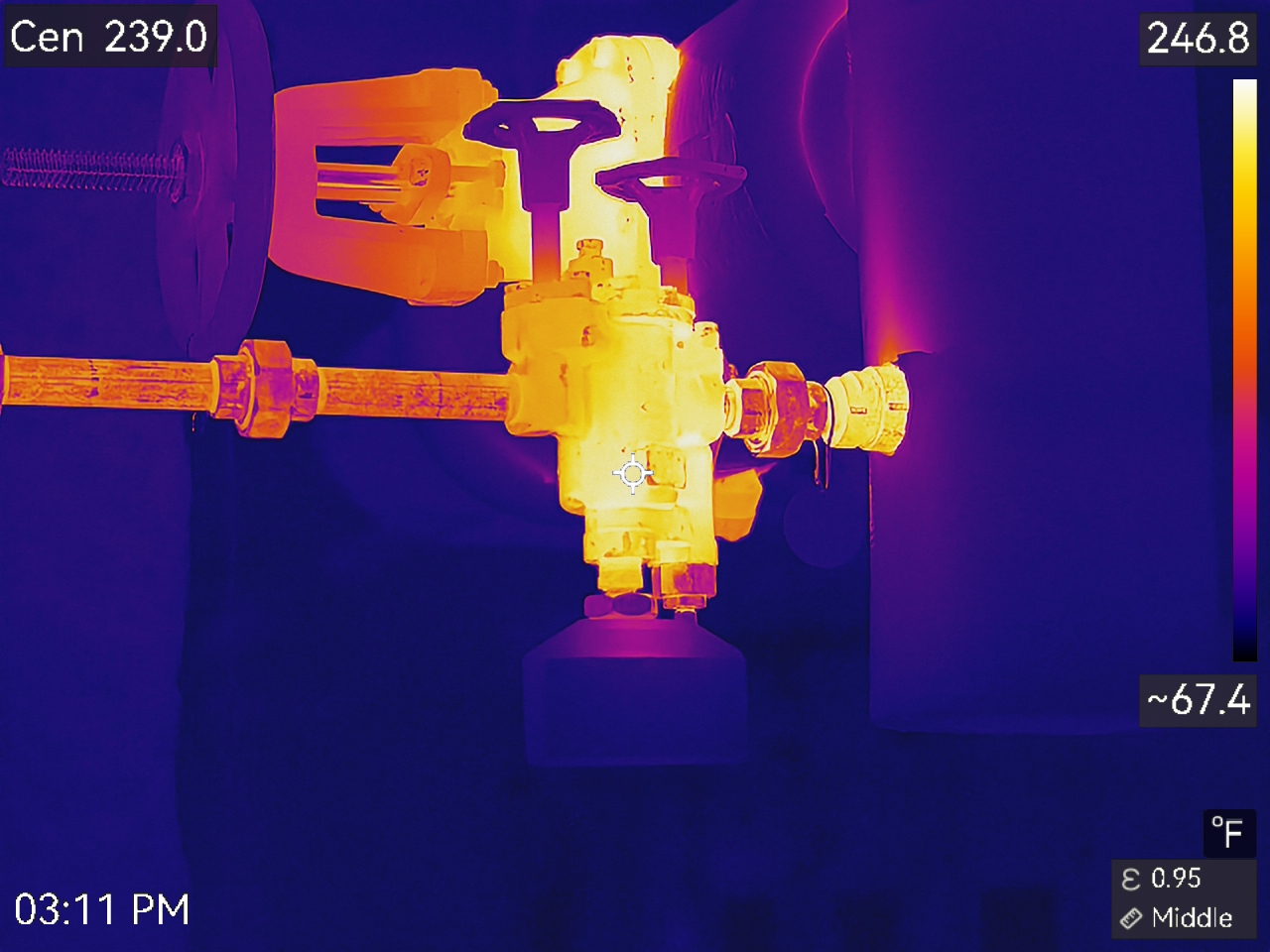

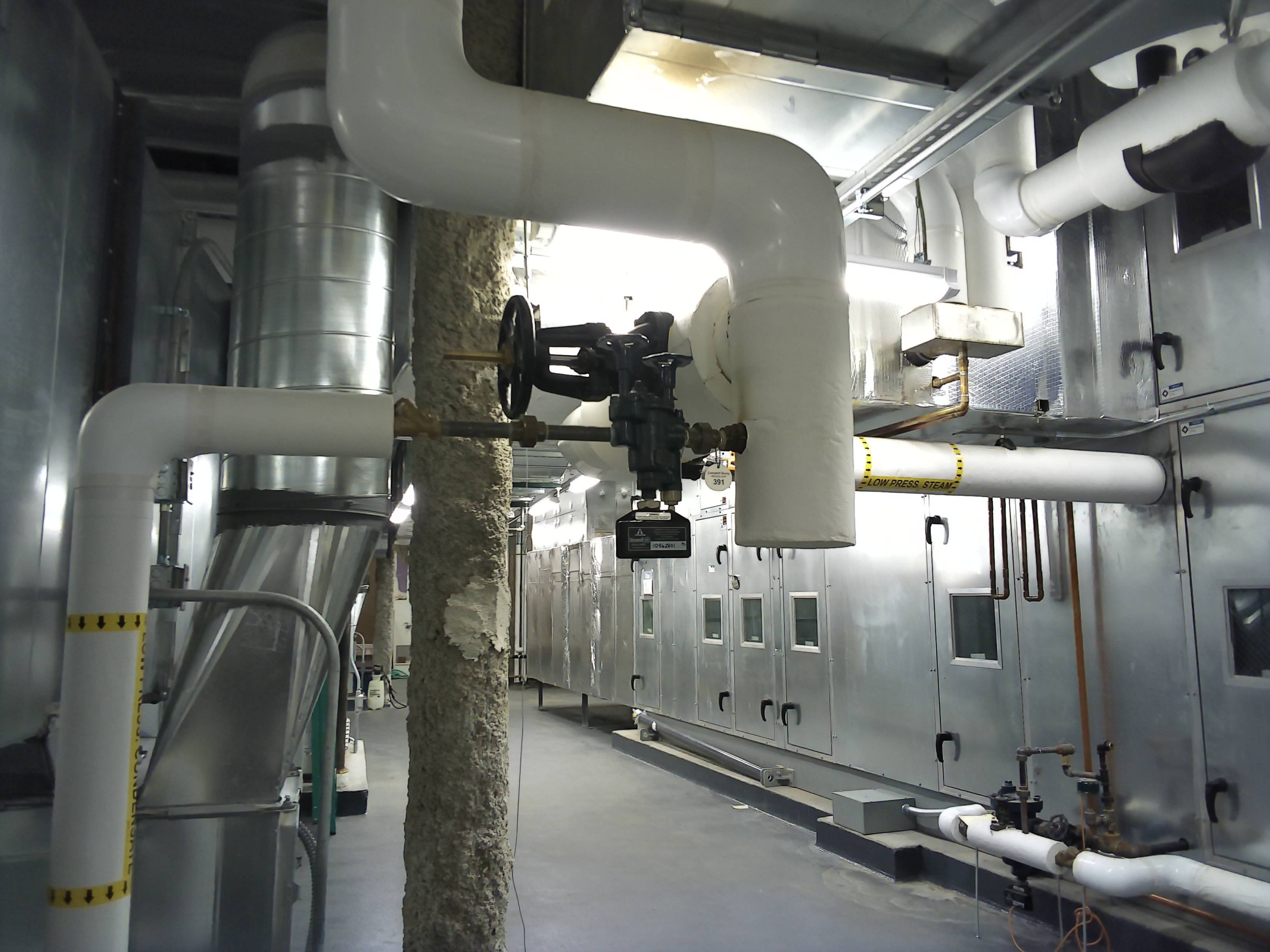

151150

· Mec room MP · Ref: 151150
Infrared
IR: Ref 151150 - IR
Ref 151150 - IR
Visible
VIS: Ref 151150 - VIS
Ref 151150 - VIS

VA 058

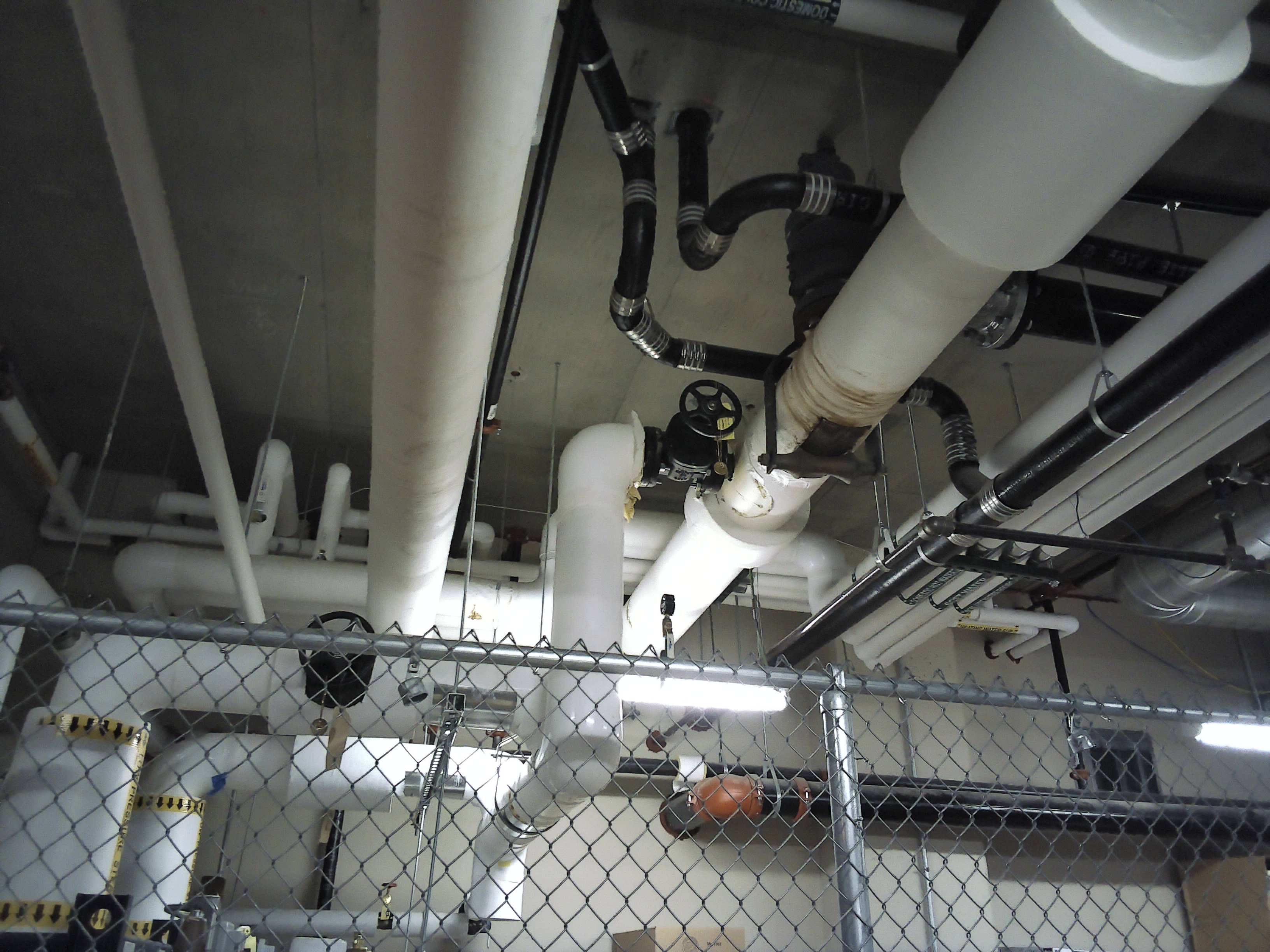

Flange · Mech room 023 · Ref: 144517
Infrared

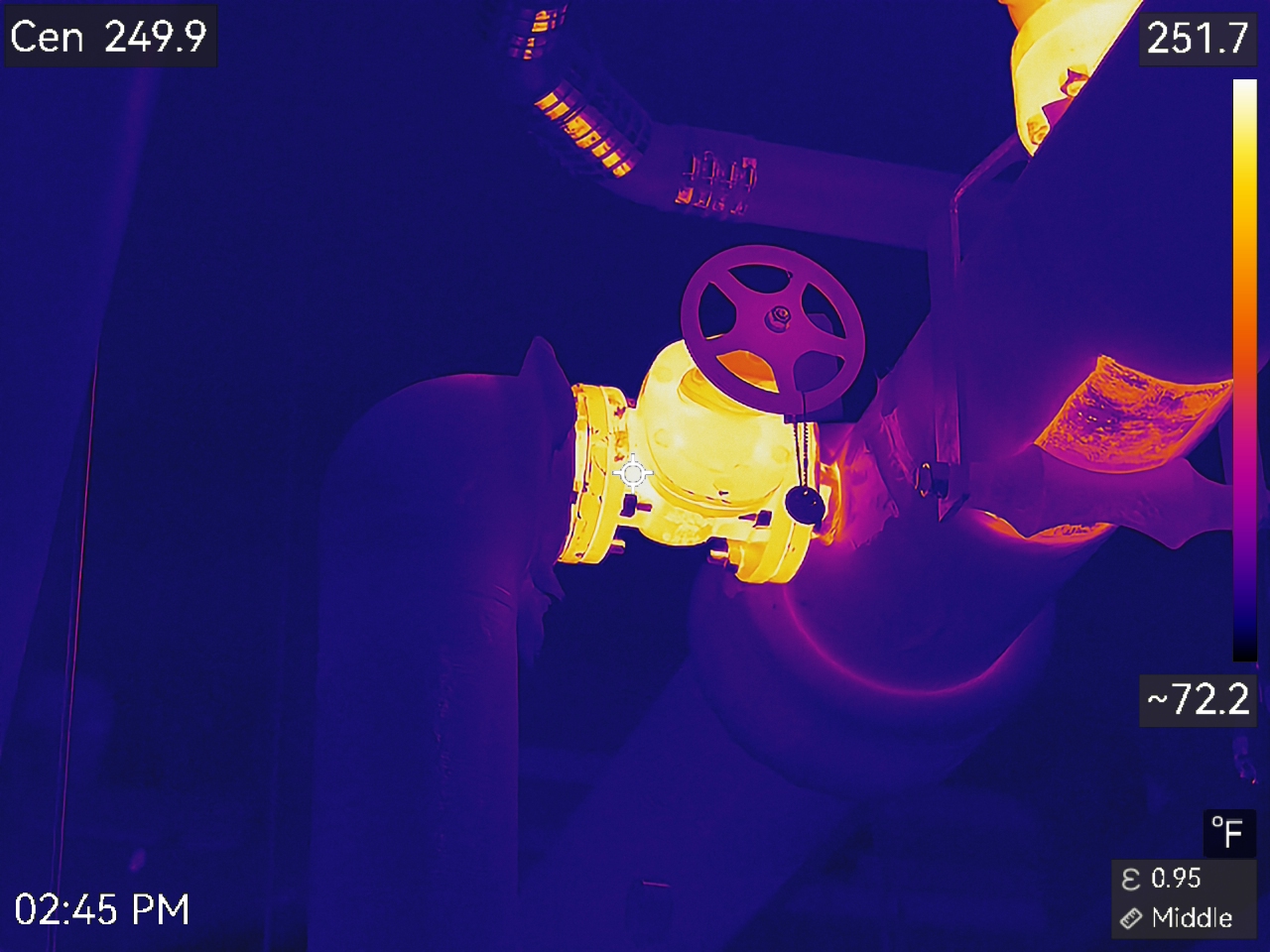

IR: Ref 144517 - IR
Ref 144517 - IR
Visible
VIS: Ref 144517 - VIS
Ref 144517 - VIS

VA 059

Bonnet · Mec room MP · Ref: 150897
Infrared
IR: Ref 150897 - IR
Ref 150897 - IR
Visible
VIS: Ref 150897 - VIS
Ref 150897 - VIS
Parameters & Methodology

Project-specific inputs and calculation methodology.

Project Parameters
Boiler Efficiency80%
Hours of Operation8,760 hrs/yr
Ambient Temperature75 °F
Wind Speed0 mph
Fuel TypeNatural Gas
Fuel Cost$6.85/Mcf

Calculation Engine

All calculations performed using NAIMA 3E Plus (v5.1), based on ASTM C680 methodology.

Inventoried Condition

Each item assessed in as-found condition. Bare surfaces have no insulation present.

Upgraded Specification

Recommended upgrades include fiberglass, cellular foam, elastomeric, and ceramic fibre materials.

Emissions Methodology

CO₂ and NOₓ calculated using EPA fuel-specific emission factors applied to energy saved.
